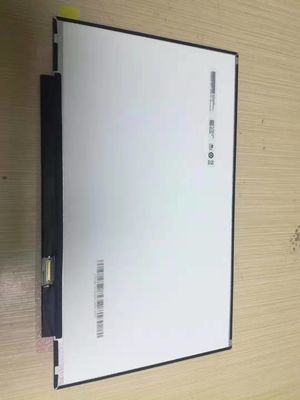

AUO 14 Inch Destop Lcd Pannel B140HAN03.9 300CD/M2 30 Pin Glass Oled Material

AUO 14inch Destop lcd pannel B140HAN03.9 ,1920*1080 Pixels Panel 300CD/M2 30 Pin

• Panel Brand
  AUO
• Panel Model
  B140HAN03.9 (AUO393D)

• Panel Size
  14.0"
• Panel Type
  a-Si TFT-LCD, LCM

• Resolution
  1920(RGB)×1080 , FHD
• Pixel Format
  RGB Vertical Stripe

• Display Area
  309.37(W)×174.02(H) mm
• Bezel Opening
  -

• Outline Size
  318.77(W)×198.54(H) ×3(D) mm
• Surface
  Antiglare, Hard coating (3H)

• Brightness
  300 cd/m² (Typ.)
• Contrast Ratio
  700:1 (Typ.) (TM)

• Viewing Angle
  85/85/85/85 (Typ.)(CR≥10)
• Display Mode
  AHVA, Normally Black, Transmissive

• Best View on
  Symmetry
• Response Time
  25 (Typ.)(Tr+Td)

• Display Colors
  16.2M 72% NTSC
• Lamp Type
  WLED , 15K hours , With LED Driver

• Frequency
  60Hz
• Touch Screen
  Without

• Shape Style
  Slim (PCBA Flat, T≤3.2mm)
• Application


• Signal Interface
• eDP (2 Lanes) , 30 pins , Connector

• Input Voltage
• 3.3V (Typ.)

• Environment
• Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

B140HAN03.9 (Product Code: AUO393D) is a 14.0" diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by EINK in the following: WLED Backlight, With LED Driver, Reverse I/F, Matte , eDP1.3. Based on its features, Panelook recommend that this model be applied to Laptop etc. According to the information stored in EINKLCD this model mass production on Q4, 2018, Now this model is in production.  We inputted this model's specification on Feb 25 2019 for the first time, and the latest update on Jul 23 2019. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail of B140HAN03.9. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

All products we sell on line with one year quality warranty and free exchange service.

All lcd products will be full test one by one before delivery.
