7 Inch LCD Display with 300cd Brightness and WLED Backlight for High Resolution Computer Monitor

Name: 7 Inch LCD Display with 300cd Brightness and WLED Backlight for High Resolution Computer Monitor
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: N070ICN-GB1
Price: 30.00 USD
Availability: InStock

Brand Name:	Innolux
Model Number:	N070ICN-GB1
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7m Colors

Model:

WLED

Style:

Wide Screen High Resolution 800*1280

Brightness:

300cd

Connector:

Contrast Ratio:

800:1

Working Time:

15k Hours

Packaging Details:

Industrial packing

Highlight:

touch screen computer monitor

high resolution touch screen monitor

Product Description

7" Computer Touch Screen Computer Monitor PDA Oled N070ICN-GB1 300cd Brightness

Product Specifications

Brand	Innolux
Model	N070ICN-GB1
Diagonal Size	7.0 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	800(RGB)*1280 [WXGA]
Configuration	RGB Vertical Stripe
Active Area	94.2(H)*150.72(V) mm
Outline Dimensions	105.62(H)163.27(V) 4.56(D) mm
Bezel Area	97.35(H)*153.82(V) mm
Treatment	Glare (Haze 0%), Hard coating (3H)
Luminance	300 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	11/9 (Typ.)(Tr/Td)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	IPS, Normally Black, Transmissive
Support Color	16.7M 60% NTSC
Light Source	WLED [3S6P], 15K hours, W/O Driver
Weight	95.0g (Max.)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	31 pins MIPI (4 data lanes), Connector
Power Supply	1.8/3.3V (Typ.)(VDDI/VCI)
Operating Temperature	-10 ~ 60 °C
Storage Temperature	-20 ~ 70 °C

Product Overview

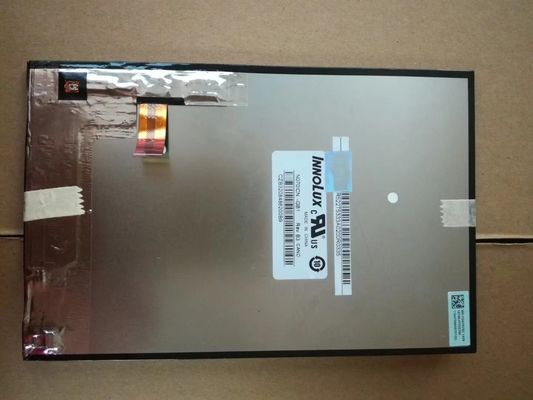

The N070ICN-GB1 is a 7.0-inch diagonal a-Si TFT-LCD display panel from Innolux Corporation, featuring an integrated WLED backlight system without backlight driver and without touch screen. This portrait-type display offers glossy surface treatment and operates within a temperature range of -10°C to 60°C, with storage capability from -20°C to 70°C.

Recommended Applications

This display model is ideally suited for Pad & Tablet applications and similar embedded systems requiring high-quality visual performance.

Important Note: The N070ICN-GB1 entered mass production in Q2 2013 and remains in current production. For integration into your products, we strongly recommend contacting Innolux or their authorized agents for the latest production status and detailed specifications. Information provided here is for reference only and should not be used as the sole basis for decision-making.
