| Brand Name: | Innolux |
| Model Number: | N070ICN-GB1 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |
Brand
Innolux
Model
N070ICN-GB1
Diagonal Size
7.0 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
800(RGB)×1280 [WXGA]
Configuration
RGB Vertical Stripe
Active Area
94.2(H)×150.72(V) mm
Outline Dim.
105.62(H)×163.27(V) ×4.56(D) mm
Bezel Area
97.35(H)×153.82(V) mm
Treatment
Glare (Haze 0%), Hard coating (3H)
Luminance
300 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (TM)
View Direction
Symmetry
Response Time
11/9 (Typ.)(Tr/Td)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
IPS, Normally Black, Transmissive
Support Color
16.7M 60% NTSC
Light Source
WLED [3S6P] , 15K hours , W/O Driver
Weight
95.0g (Max.)
Designed For
Frame Rate
60Hz
Touch Panel
Without
Interface Type
31 pins MIPI (4 data lanes) , Connector
Power Supply
1.8/3.3V (Typ.)(VDDI/VCI)
Environment
Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C

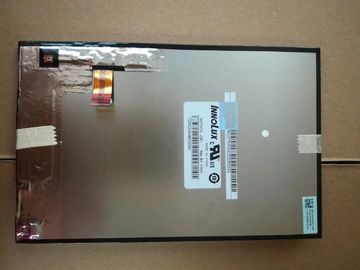

The N070ICN-GB1 is a 7.0 inch diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -20 ~ 70°C . It's general features are summarized by einklcd in the following: Portrait type, WLED Backlight, Glossy . Based on its features, einklcd recommend that this model be applied to Pad & Tablet etc. According to the information stored in einklcd this model mass production on Q2, 2013, Now this model is in production. We inputted this model's specification on Nov 7 2013 for the first time, and the latest update on Jul 2 2018. If you want to embed N070ICN-GB1 LCM in your future product, einklcd strongly recommend that you should contact with Innolux or it's agent to learn lateast production and specification detail. The N070ICN-GB1 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
|
|
