19 Inch High Resolution LCD Monitor with 1440x900 Pixels and 250cd Brightness AUO Panel

Name: 19 Inch High Resolution LCD Monitor with 1440x900 Pixels and 250cd Brightness AUO Panel
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: M190PW01 V8
Price: 30.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	M190PW01 V8
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

Korea

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7m Colors

Model:

WLED

Style:

Wide Screen High Resolution 1440*900

Brightness:

250cd

Connector:

30PIN

Contrast Ratio:

1000:1

Working Time:

30k Hours

Packaging Details:

Industrial packing

Highlight:

touch screen computer monitor

high resolution touch screen monitor

Product Description

250cd 30 Pin High Resolution Touch Screen Monitor AUO 19 Inch M190PW01 V8

Panel Brand AUO

Panel Model M190PW01 V8

Panel Size 19.0"

Panel Type a-Si TFT-LCD, LCM

Resolution 1440*900 (WXGA+)

Pixel Format RGB Vertical Stripe

Brightness 250 cd/m²

Contrast Ratio 1000:1

Viewing Angle 85/85/80/80

Response Time 3.6/1.4 ms (Tr/Td)

Display Colors 16.7M (72% NTSC)

Signal Interface LVDS (2 ch, 8-bit), 30 pins

Input Voltage 5.0V

Operating Temperature 0°C to 50°C

Storage Temperature -20°C to 60°C

Panel Weight 1.45 kg

Product Overview

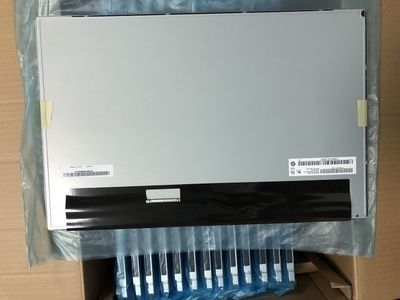

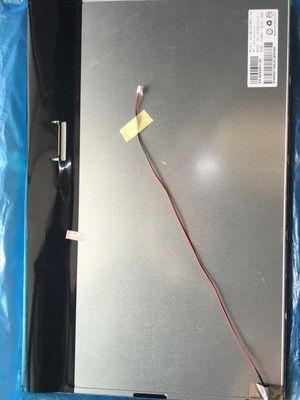

The M190PW01 V8 is a 19.0-inch diagonal a-Si TFT-LCD display panel from AU Optronics Corp. featuring an integral WLED backlight system. This high-resolution panel offers 1440*900 WXGA+ resolution with 250 cd/m² brightness and 1000:1 contrast ratio, making it suitable for desktop monitor applications.

Key Features

• 19-inch WXGA+ resolution (1440*900)
• 250 cd/m² brightness with 1000:1 contrast ratio
• 16.7 million color display with 72% NTSC coverage
• LVDS interface with 30-pin connector
• WLED backlight with 30,000-hour lifespan
• Matte anti-glare surface with hard coating (3H)
• TCO 5.1 compliance for environmental standards

Production Status Note: This model entered mass production in Q1 2011 with last shipment in Q1 2019. The M190PW01 V8 is currently discontinued. For integration into future products, contact AUO or their agent for latest production and specification details.

Application Recommendation: This display panel is recommended for desktop monitor applications. Specifications were last updated on August 6, 2019. Production status information is for reference only and should not be used as the sole basis for decision making.
