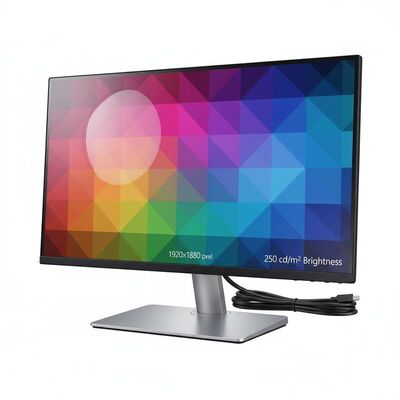

Samsung 23 Inch Widescreen LCD Monitor with 1920*1080 Pixels and 250cd Brightness

Name: Samsung 23 Inch Widescreen LCD Monitor with 1920*1080 Pixels and 250cd Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LTM230HL08
Price: 30.00 USD
Availability: InStock

Brand Name:	SAMSUNG
Model Number:	LTM230HL08
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

Korea

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7m Colors

Model:

WLED

Style:

Wide Screen High Resolution 1920*1080

Brightness:

250cd

Connector:

30PIN

Contrast Ratio:

1000:1

Working Time:

40k Hours

Packaging Details:

Industrial packing

Highlight:

touch screen computer monitor

high resolution touch screen monitor

Product Description

Samsung 23-Inch Widescreen LCD Monitor

High-performance 23-inch FHD TFT-LCD display panel with PLS technology and WLED backlight system.

Technical Specifications

Brand	SAMSUNG
Model	LTM230HL08
Display Size	23.0 inch diagonal
Display Type	a-Si TFT-LCD, LCM
Resolution	1920*1080 pixels (FHD)
Pixel Configuration	RGB Vertical Stripe
Active Area	509.184(H) * 286.416(V) mm
Outline Dimensions	533.2(H) * 312(V) * 11(D) mm
Brightness	250 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)
Response Time	12ms (Typical, G to G)
Viewing Angle	89/89/89/89 (CR≥10)
Operating Mode	PLS, Normally Black, Transmissive
Color Support	16.7M colors, 72% NTSC
Backlight	WLED [12S3P], 40K hours lifespan
Weight	2.30 kg (Maximum)
Refresh Rate	60Hz
Interface	30 pins LVDS (2 ch, 8-bit) Connector
Power Supply	5.0V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Surface Treatment	Antiglare (Haze 25%), Hard coating (3H)

Product Overview

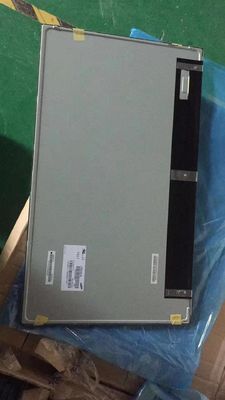

The LTM230HL08 is a 23.0-inch diagonal a-Si TFT-LCD display panel from Samsung Display Co., Ltd., featuring an integrated WLED backlight system without driver and without touch screen capability.

Antiglare surface treatment for reduced reflections
Wide viewing angle for consistent image quality
Landscape orientation design
White LED backlight technology
Wide 16:9 aspect ratio
Reverse signal interface positioning
TCO 6.0 compliance for environmental standards

This display model is recommended for desktop monitor applications and similar professional uses.

Important Notice: This model entered mass production in Q3 2013 and is currently discontinued. For integration into future products, we strongly recommend contacting Samsung Display or their authorized agents for the latest production status and specification details. The information provided here is for reference only and should not be used as the sole basis for decision-making.
