17.3 Inch Widescreen LCD Monitor with 300cd/m2 Brightness and 30 Pin Connector for High Resolution Display

Brand Name:	Innolux
Model Number:	N173HCE-E31
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

Taiwan

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

1.07b Colors

Model:

WLED

Style:

Wide Screen High Resolution 1920*1080

Brightness:

300cd

Connector:

30pin

Contrast Ratio:

700:1

Working Life:

15K Hours

Packaging Details:

Industrial packing

Highlight:

touch screen computer monitor

high resolution touch screen monitor

Product Description

Innolux 17.3 Inch Widescreen LCD Monitor Panel

High-quality 17.3-inch TFT-LCD display panel with Full HD resolution, designed for computer monitors and desktop screens.

Panel Specifications

Specification	Details
Panel Brand	Innolux
Panel Model	N173HCE-E31 (CMN1738)
Panel Size	17.3 inches
Resolution	1920*1080 (FHD)
Brightness	300 cd/m² (Typical)
Contrast Ratio	700:1 (Typical)
Viewing Angle	89/89/89/89 (CR≥10)
Display Colors	262K, 72% (CIE1931)
Response Time	14/11 ms (Typical Tr/Td)

Technical Details

Feature	Specification
Panel Type	a-Si TFT-LCD, LCM
Display Mode	AAS, Normally Black, Transmissive
Signal Interface	eDP (2 Lanes), 30 pins, Connector
Input Voltage	3.3V (Typical)
Backlight	WLED, 15K hours, With LED Driver
Surface Treatment	Antiglare, Hard coating (3H)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

Physical Dimensions

Display Area: 381.888mm (W) * 214.812mm (H)
Outline Size: 399.5mm (W) * 250.51mm (H) * 4mm (D)
Shape Style: Flat (PCBA Flat, Depth 3.4-4.0mm)

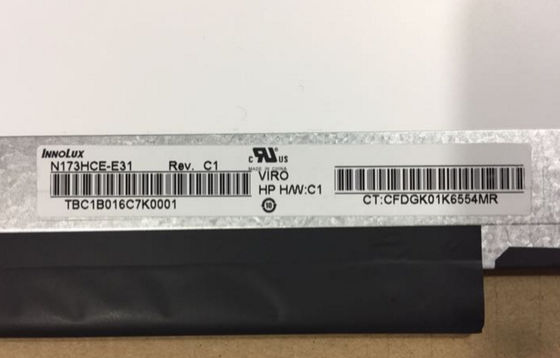

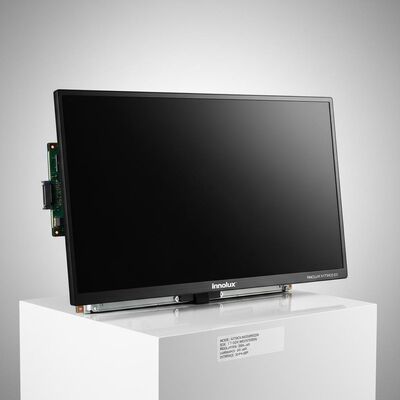

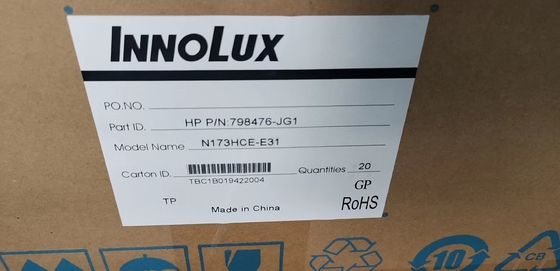

Product Images

Quality Assurance: This 300cd/m² Innolux 17.3-inch LCD model is designed for monitor and desktop screen applications. All our LCD/LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
