Samsung 19" Smart LCD Monitor with 1280x1024 Resolution 250cd/m² Brightness and 50K Hours Working Time

Name: Samsung 19" Smart LCD Monitor with 1280x1024 Resolution 250cd/m² Brightness and 50K Hours Working Time
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LTM190E4-L02
Price: 30.00 USD
Availability: InStock

Brand Name:	Samsung
Model Number:	LTM190E4-L02
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7m Colors

Model:

WLED

Style:

Wide Screen High Resolution 1280*1024

Brightness:

250cd

Connector:

Contrast Ratio:

1500:1

Working Time:

50k Hours

Packaging Details:

Industrial packing

Highlight:

touch screen computer monitor

high resolution touch screen monitor

Product Description

Samsung 19" Smart Touch Screen Monitor LTM190E4-L02

Technical Specifications

Panel Brand	SAMSUNG	Panel Model	LTM190E4-L02
Panel Size	19.0"	Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)*1024, SXGA	Pixel Format	RGB Vertical Stripe
Display Area	376.32(W)*301.056(H) mm	Bezel Opening	380.2(W)*305.0(H) mm
Outline Size	396(W)324(H)17(D) mm	Surface	Antiglare (Haze 44%), Hard coating (3H)
Brightness	250 cd/m² (Typ.)	Contrast Ratio	1500:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Display Mode	PVA, Normally Black, Transmissive
Best View	Symmetry	Response Time	13/7 (Typ.)(Tr/Td)
Display Colors	16.7M 72% (CIE1931)	Lamp Type	4 pcs CCFL, 50K hours, Without Driver
Frequency	60Hz	Touch Screen	Without
Panel Weight	2.55Kgs (Max.)	Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit), 30 pins, Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50°C; Storage Temp.: -20 ~ 65°C

Product Overview

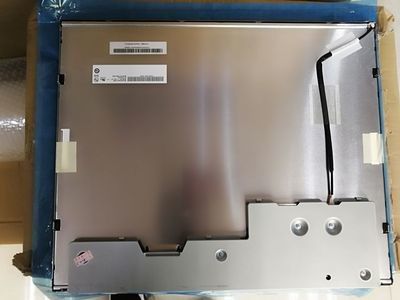

Samsung Display Co., Ltd. LTM190E4-L02 is a 19.0-inch diagonal a-Si TFT-LCD display panel product featuring an integral CCFL backlight system. This panel is designed without backlight driver and touch screen functionality.

Key Features

High Color Gamut for vibrant display performance
Antiglare Surface with hard coating (3H) protection
Wide Viewing Angle (89/89/89/89) for optimal visibility
Landscape orientation design
Extended lamp life ≥ 50K hours

Recommended Applications

This model is ideally suited for Desktop Monitor applications and similar display requirements.

Production Status Notice: This model entered mass production in Q4 2004 with last shipment in Q1 2012. The LTM190E4-L02 is currently discontinued. For integration into future products, we strongly recommend contacting SAMSUNG or their distributor for the latest production and specification details. The production status information provided is for reference only and should not be used as the basis for decision making.

Quality Assurance: All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
