BOE HT150X02-100 15.0 Inch LCD Monitor with 1024×768 Pixels and 250 cd/m² Brightness

Name: BOE HT150X02-100 15.0 Inch LCD Monitor with 1024×768 Pixels and 250 cd/m² Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: HT150X02-100
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	HT150X02-100
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7m Colors

Model:

WLED

Style:

Wide Screen High Resolution 1024*768

Brightness:

250cd

Connector:

Contrast Ratio:

500:1

Working Time:

50k Hours

Packaging Details:

Industrial packing

Highlight:

touch screen computer monitor

high resolution touch screen monitor

Product Description

HT150X02-100 High Resolution Touch Screen Monitor 250CD/M2 BOE 15" LCD Model 1024*768 Pixels

Product Specifications

Brand BOE

Model HT150X02-100

Diagonal Size 15.0 inch

Type a-Si TFT-LCD, LCM

Pixel Format 1024(RGB)*768 [XGA]

Configuration RGB Vertical Stripe

Active Area 304.128(H)*228.096(V) mm

Outline Dimensions 326.5(H)*253.5(V) *11.9(D) mm

Bezel Area 307.4(H)*231.3(V) mm

Surface Treatment Antiglare (Haze 25%), Hard coating (3H)

Luminance 250 cd/m² (Typ.)

Contrast Ratio 500:1 (Typ.) (TM)

Response Time 2/6 (Typ.)(Tr/Td)

Viewing Angle 75/75/70/60 (Typ.)(CR≥10)

Operating Mode TN, Normally White, Transmissive

Support Color 16.2M 60% (CIE1931)

Light Source CCFL [2 pcs], 50K hours, W/O Driver

Weight 1.20Kgs (Max.)

Frame Rate 60Hz

Touch Panel Without

Interface Type 20 pins LVDS (1 ch, 8-bit), Connector

Power Supply 3.3V (Typ.)

Operating Temperature 0 ~ 50 °C

Storage Temperature -20 ~ 60 °C

Product Overview

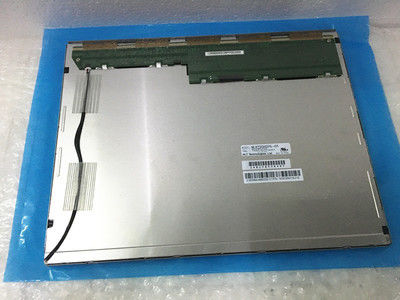

HT150X02-100 is a 15.0" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd., featuring an integral CCFL backlight system without backlight driver and without touch screen. This industrial-grade display operates within a temperature range of 0~50°C and stores safely at -20~60°C.

Key features include antiglare surface, landscape orientation, lamp life ≥ 50K hours, and normal signal interface position. Recommended applications include industrial equipment and desktop monitors.

Production Status Notice: This model entered mass production in Q2 2006 with last shipment in Q4 2013. The product is currently discontinued. Specifications were first recorded on January 5, 2012, with the latest update on December 23, 2016. For integration into future products, contact BOE or their authorized agents for the latest production and specification details. Production status information is for reference only and should not be used as the sole basis for decision-making.

All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment.
