7" 800*480 Pixels TFT-LCD Panel with 350cd Brightness and 500:1 Contrast Ratio for Portable DVD Player and Digital Photo Frame

Name: 7" 800*480 Pixels TFT-LCD Panel with 350cd Brightness and 500:1 Contrast Ratio for Portable DVD Player and Digital Photo Frame
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: TM070RDHG12
Price: 30.00 USD
Availability: InStock

Brand Name:	TIANMA
Model Number:	TM070RDHG12
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

262k Colors

Model:

WLED

Style:

Wide Screen High Resolution 800*480

Brightness:

350cd

Connector:

Contrast Ratio:

500:1

Working Time:

20k Hours

Packaging Details:

Industrial packing

Highlight:

high resolution touch screen monitor

smart touch screen monitor

Product Description

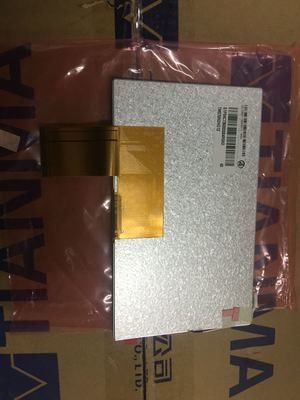

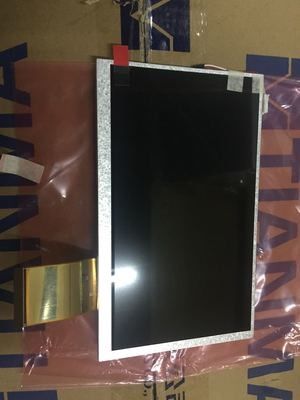

TM070RDHG12 7" TFT-LCD Display Panel

Panel Brand TIANMA

Panel Size 7.0"

Resolution 800*480 WVGA

Brightness 350 cd/m²

Contrast Ratio 500:1

Display Colors 262K/16.7M

Interface Parallel RGB, 60 pins

Operating Temp -20°C to 70°C

Product Overview

The TIANMA TM070RDHG12 is a 7.0-inch diagonal a-Si TFT-LCD display panel featuring an integrated WLED backlight system. This high-quality display module is designed for industrial applications with its antiglare surface, wide aspect ratio, and robust operating temperature range.

Key Features

• Antiglare surface for reduced reflections
• 6/8-bit selectable color depth
• Landscape orientation with wide aspect ratio
• White LED backlight with 20,000-hour lifespan
• U/D, L/R reverse functionality
• Parallel RGB interface with 60-pin FPC connector

Recommended Applications

This display panel is ideally suited for:
• Portable DVD players
• Digital photo frames
• Industrial control systems
• Embedded display applications

Important Note: This model entered mass production in Q3 2015 and is currently discontinued. For integration into new products, we strongly recommend contacting TIANMA or their distributors for the latest production status and specifications.

Quality Assurance

All our LCD display modules undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.

Product information last updated: March 29, 2018 | Suggested driver IC: HX8264
