23.6 Inch Touch Screen Monitor with 350cd/m2 Brightness and 30 PIN Connector for Desktop LCD Display

Name: 23.6 Inch Touch Screen Monitor with 350cd/m2 Brightness and 30 PIN Connector for Desktop LCD Display
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: M236HJJ-P02
Price: 30.00 USD
Availability: InStock

Brand Name:	innolux
Model Number:	M236HJJ-P02
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

Korea

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7m Colors

Model:

WLED

Style:

Wide Screen High Resolution 1920*1080

Brightness:

350cd

Connector:

30PIN

Contrast Ratio:

3000:1

Working Life:

30K Hours

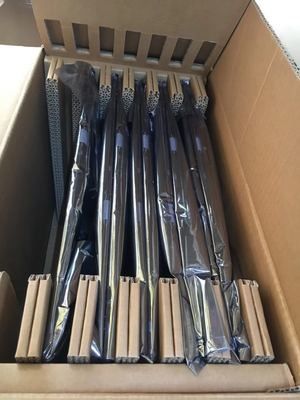

Packaging Details:

Industrial packing

Highlight:

touch screen computer monitor

high resolution touch screen monitor

Product Description

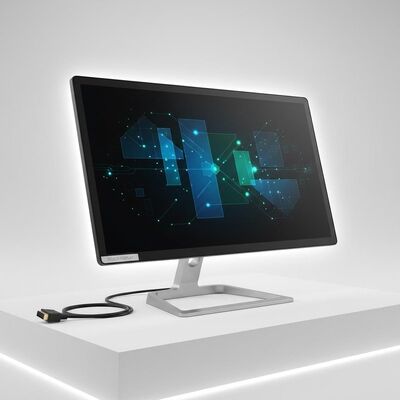

23.6 Inch Desktop Smart Touch Screen Monitor

Innolux M236HJJ-P02 Rev.C1 LCD Display Panel

High-performance 23.6-inch TFT-LCD display panel featuring FHD resolution, wide viewing angles, and industrial-grade reliability.

Technical Specifications

Manufacturer	Innolux
Model Name	M236HJJ-P02 Rev.C1
Screen Size	23.6 inch
Resolution	1920 * 1080 (FHD)
Active Area	521.28 * 293.22 mm (H*V)
Outline Dimensions	534.28 * 306.252 mm (HVD)
Luminance	350 cd/m²
Contrast Ratio	3000:1 (Typical)
Viewing Angle	89/89/89/89 (CR≥10)
Response Time	10 ms (G to G)
Color Depth	16.7M colors, 72% CIE1931
Refresh Rate	60Hz
Signal Type	LVDS (2 ch, 8-bit), 30-pin Connector
Voltage Supply	5.0V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

Key Features

High Color Gamut for vibrant image reproduction
Antiglare Surface with Hard Coating (3H) for reduced reflections
Wide Viewing Angle (Super MVA technology)
Landscape orientation with Wide Aspect Ratio
Normally Black, Transmissive work mode
RGB Vertical Stripe pixel arrangement

Product Images

Product Overview

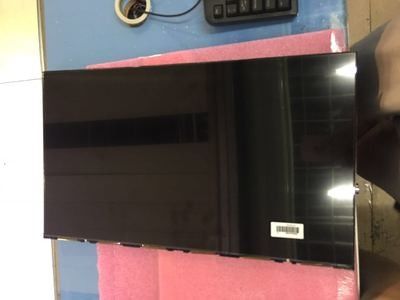

The Innolux M236HJJ-P02 Rev.C1 is a 23.6-inch diagonal a-Si TFT-LCD display panel designed for professional applications. This CELL product operates without integrated backlight or touch screen, making it ideal for custom integration projects.

Recommended Applications: Desktop monitors and professional display systems requiring high-quality visual performance.

Important Notice: This model entered mass production in Q2 2014 and is currently in production. For the latest specifications and production status, please contact Innolux or their authorized distributors directly. The information provided is for reference only and should not be used as the sole basis for decision-making.

Quality Assurance: All our LCD, LED screen, monitor module, and panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
