| Brand Name: | innolux |
| Model Number: | M236HJJ-P02 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |
| Manufacturer |
|---|
| Screen Size |
| Pixel Number |
| Active Area(mm) |
| Bezel Area(mm) |
| Luminance |
| Viewing Angle |
| Good View at |
| Glass Thickness |
| Color Depth |
| Mass |
| Refresh Rate |
| Innolux |
| 23.6 inch |
| 1920(RGB)×1080 (FHD) |
| 521.28 × 293.22 (H×V) |
| - |
| 0 (cd/m²) |
| 89/89/89/89 (Typ.)(CR≥10) |
| Symmetry |
| - |
| 16.7M 72% (CIE1931) |
| TBD |
| 60Hz |
| Model Name |
| Screen Type |
| Arrangement |
| Outline(mm) |
| Treatment |
| Contrast Ratio |
| Work Mode |
| Response |
| Transmissivity |
| Backlight |
| Used for |
| Touchscreen |
| M236HJJ-P02 Rev.C1 |
| CELL , a-Si TFT-LCD |
| RGB Vertical Stripe |
| 534.28 × 306.252 (H×V×D) |
| Antiglare (Haze 3%), Hard coating (3H) |
| 3000 : 1 (Typ.) (TM) |
| Super MVA, Normally Black, Transmissive |
| 10 (Typ.)(G to G) ms |
| 4.6% (Typ.)(with Polarizer) |
| No B/L |
|
|
| Without |
| Signal Type | LVDS (2 ch, 8-bit) , Connector , 30 pins |
|---|---|
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

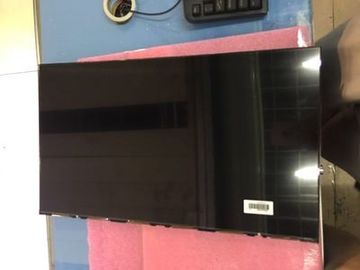

Innolux Corporation (hereafter called Innolux) M236HJJ-P02 Rev.C1 is a 23.6 inch diagonal a-Si TFT-LCD display panel product, without backlight, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: High Color Gamut, Antiglare Surface, Wide Viewing Angle, Landscape type, Wide Aspect Ratio . Based on its features, einklcd recommend that this model be applied to Desktop Monitor etc. According to the information stored in einklcd this model mass production on Q2, 2014, Now this model is in production. We inputted this model's specification on Jul 16 2014 for the first time, and the latest update on Dec 20 2017. If you want to embed M236HJJ-P02 Rev.C1 CELL in your future product, Peinklcd strongly recommend that you should contact with Innolux or it's distributor to learn lateast production and specification detail. The M236HJJ-P02 Rev.C1 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
All our LCD LED screen monitor module panel products will be full test one by one before sending .
|
|
