Samsung 27 Inch Widescreen LCD Display with 1920*1080 Pixels and 3000:1 Contrast Ratio

Name: Samsung 27 Inch Widescreen LCD Display with 1920*1080 Pixels and 3000:1 Contrast Ratio
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LSM270HP04-W02
Price: 30.00 USD
Availability: InStock

Brand Name:	samsung
Model Number:	LSM270HP04-W02
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

KOREA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1920*1080

Brightness:

N/A

Connector:

N/A

Contrast Ratio:

3000:1

Working Life:

30K Hours

Packaging Details:

Industrial packing

Highlight:

touch screen computer monitor

high resolution touch screen monitor

Product Description

Samsung 27 Inch Widescreen Touch Screen Computer Monitor 1920*1080 Pixels LSM270HP04-W02

Panel Specifications

Panel Brand SAMSUNG

Panel Model LSM270HP04

Panel Size 27.0"

Panel Type a-Si TFT-LCD, CELL

Resolution 1920*1080 (FHD)

Pixel Format RGB Vertical Stripe

Display Area 597.888*336.312 mm

Outline Size 608.888*348.462*1.2 mm

Surface Antiglare (Haze 25%)

Contrast Ratio 3000:1 (Typ.)

Viewing Angle 89/89/89/89 (Typ.)

Display Mode SPVA, Normally Black, Transmissive

Response Time 21ms (Typ.)

Display Colors 16.7M 72% (CIE1931)

Frequency 60Hz

Touch Screen Without

Panel Weight 560g (Typ.)

Signal Interface LVDS (2 ch, 8-bit), 30 pins, Connector

Input Voltage 12.0V (Typ.)

Operating Temperature 0°C to 50°C

Storage Temperature -20°C to 60°C

Key Features

High Color Gamut
Antiglare Surface
Wide Viewing Angle
Landscape Orientation
Wide Aspect Ratio

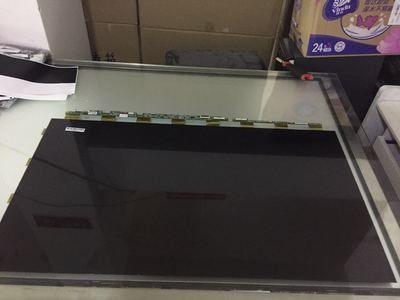

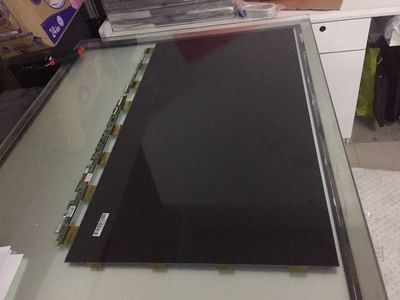

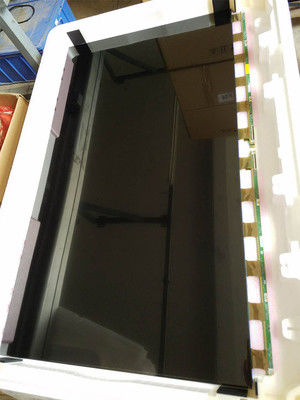

Product Images

Product Overview

Samsung Display Co., Ltd. LSM270HP04 is a 27.0-inch diagonal a-Si TFT-LCD display panel product designed for professional applications. This panel operates without backlight and does not include touch screen functionality. The display features an optimal operating temperature range of 0°C to 50°C and storage temperature range of -20°C to 60°C. This model entered mass production in Q4 2016 and remains in current production. Recommended applications include desktop monitors and similar professional display solutions.

Quality Assurance: All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.

For the most current production status and detailed specifications, we strongly recommend contacting Samsung or their authorized distributors directly. The production status information provided here is for reference purposes only and should not be used as the sole basis for decision-making.
