BOE 23.6 Inch WLED Widescreen LCD Monitor with 1920*1280 Pixels HR236WU3-301

Name: BOE 23.6 Inch WLED Widescreen LCD Monitor with 1920*1280 Pixels HR236WU3-301
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: HR236WU3-301
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	HR236WU3-301
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

KOREA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1920*1280

Brightness:

250cd

Connector:

30pin

Contrast Ratio:

1000:1

Working Life:

30K Hours

Packaging Details:

Industrial packing

Highlight:

touch screen computer monitor

high resolution touch screen monitor

Product Description

WLED Widescreen LCD Computer Monitors BOE 23.6 Inch 1920*1080 Pixels HR236WU3-301

Product Specifications

Brand	BOE
Model	HR236WU3-301
Diagonal Size	23.6 inch
Type	a-Si TFT-LCD, CELL
Pixel Format	1920(RGB)*1080 [FHD]
Active Area	521.28(H)*293.22(V) mm
Outline Dimensions	535.9(H)307(V)1.43(D) mm
Surface Treatment	Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio	1000:1 (Typ.)
Response Time	14ms (Typ.)(G to G)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	ADS, Normally Black, Transmissive
Support Color	16.7M (sRGB)
Light Source	No Backlight
Weight	510g (Typ.)
Frame Rate	60Hz
Interface Type	30 pins LVDS (2 ch, 8-bit), Connector
Power Supply	5.0V (Typ.)
Operating Temperature	0 ~ 50°C
Storage Temperature	-20 ~ 60°C

Product Overview

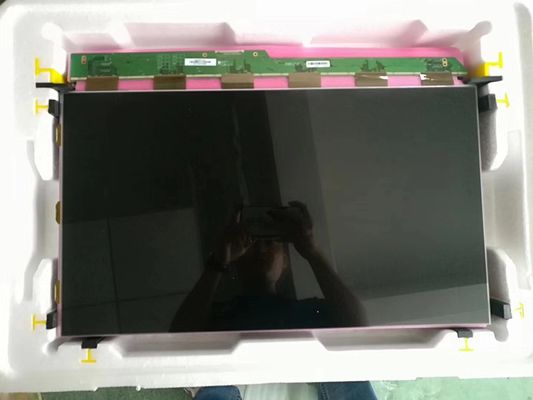

BOE Technology Group Co., Ltd. HR236WU3-301 is a 23.6 inch diagonal a-Si TFT-LCD display panel product designed for desktop monitor applications. This display cell features no integrated backlight and does not include touch screen functionality.

Key Features

Full HD 1920*1080 pixel resolution
sRGB color gamut support for accurate color reproduction
Antiglare surface treatment with hard coating (3H)
Wide 89/89/89/89 viewing angles
Landscape orientation with wide aspect ratio
Standard signal interface positioning

Production Information

This model entered mass production in Q2 2014 and is currently discontinued. Specifications were first recorded on January 15, 2016, with the latest update on August 30, 2018. For integration into future products, contact BOE or their distributors for the latest production and specification details.

Important Note: The production status information provided is for reference only and should not be used as the sole basis for decision-making. All LCD/LED screen monitor module panel products undergo comprehensive individual testing before shipment.
