Samsung LTM190ET01 19'' LCD Monitor with 1280*1024 Resolution and 250cd/m2 Brightness

Name: Samsung LTM190ET01 19'' LCD Monitor with 1280*1024 Resolution and 250cd/m2 Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LTM190ET01
Price: 30.00 USD
Availability: InStock

Brand Name:	samsung
Model Number:	LTM190ET01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

KOREA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1280*1024

Brightness:

250cd

Connector:

30pin

Contrast Ratio:

1000:1

Working Life:

30K Hours

Packaging Details:

Industrial packing

Highlight:

touch screen computer monitor

high resolution touch screen monitor

Product Description

LTM190ET01 30 PIN Ultra Wide Touch Screen Monitor Samsung 19'' 1280*1024 Pixels 250cd/m²

Product Specifications

Manufacturer: SAMSUNG

Model Name: LTM190ET01

Screen Size: 19.0 inch

Screen Type: LCM, a-Si TFT-LCD

Resolution: 1280*1024 (SXGA)

Brightness: 250 cd/m²

Contrast Ratio: 1000:1

Response Time: 5 ms

Viewing Angle: 80/80/80/80 (CR≥10)

Color Depth: 16.7M colors, 72% CIE1931

Backlight: 2 CCFL, 50K hours

Signal Type: LVDS (2 ch, 8-bit), 30 pins

Operating Voltage: 5.0V

Operating Temp: 0°C to 50°C

Storage Temp: -25°C to 60°C

Weight: 2.20 kg (Max.)

Product Overview

The LTM190ET01 is a 19.0-inch diagonal a-Si TFT-LCD display panel from Samsung Display Co., Ltd., featuring an integrated CCFL backlight system. This industrial-grade monitor panel offers reliable performance with comprehensive specifications suitable for professional applications.

Key Features

High color gamut for vibrant display performance
Antiglare surface with hard coating (3H) for durability
Wide viewing angle capabilities
Landscape orientation design
Extended backlight life (≥50,000 hours)
DE (Data Enable) mode operation
TCO'03 compliance for environmental standards

Application Recommendations

This display panel is recommended for desktop monitor applications and other professional display solutions requiring reliable performance and high-quality visual output.

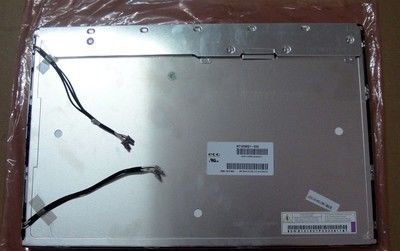

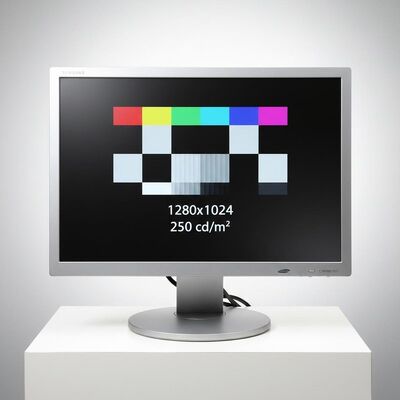

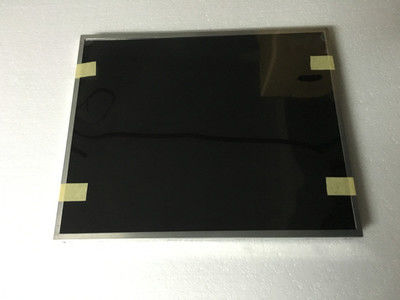

Product Images

Important Notes

Production Status: This model began mass production in Q2 2009 with last shipment in Q2 2011. The product is currently discontinued. We strongly recommend contacting Samsung or their authorized agents for the latest production and specification details before integration into your products.

Quality Assurance: All our LCD/LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
