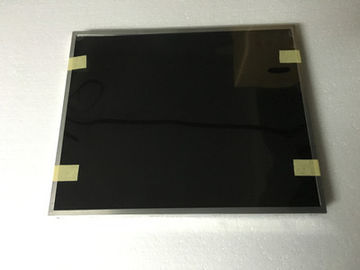

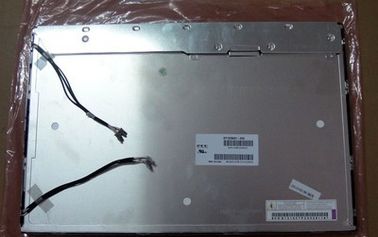

LTM190ET01 30 PIN Ultra Wide Touch Screen Monitor Samsung 19'' 1280*1024 Pixels 250cd/m2

Manufacturer

SAMSUNG

Model Name

LTM190ET01

Screen Size

19.0 inch

Screen Type

LCM , a-Si TFT-LCD

Pixel Number

1280(RGB)×1024 (SXGA)

Arrangement

RGB Vertical Stripe

Active Area(mm)

376.32 × 301.056 (H×V)

Outline(mm)

396 × 324 × 17 (H×V×D)

Bezel Area(mm)

380.2 × 305.0 (H×V)

Treatment

Antiglare (Haze 25%), Hard coating (3H)

Luminance

250 cd/m² (Typ.)

Contrast Ratio

1000 : 1 (Typ.) (TM)

Viewing Angle

80/80/80/80 (Min.)(CR≥10)

Response

5 (Typ.)(Tr+Td) ms

Good View at

-

Work Mode

TN, Normally White, Transmissive

Color Depth

16.7M 72% (CIE1931)

Backlight

2 pcs CCFL , 50K hours , No Driver

Mass

2.20Kgs (Max.)

Used for

Refresh Rate

60Hz

Touchscreen

Without

Signal Type

LVDS (2 ch, 8-bit) , Connector , 30 pins

Voltage Supply

5.0V (Typ.)

Max. Ratings

Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C

LTM190ET01 is a 19.0" diagonal a-Si TFT-LCD display panel product from Samsung Display Co., Ltd. (hereafter called SAMSUNG), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -25 ~ 60°C . It's general features are summarized by EINKLCD in the following: High Color Gamut, Antiglare Surface, Wide Viewing Angle, Landscape type, Lamp life ≥ 50K hours , DE (Data Enable) mode, TCO'03 compliance. Based on its features, EINKLCD recommend that this model be applied to Desktop Monitor etc. According to the information stored in Panelook this model mass production on Q2, 2009 and last shippment on Q2, 2011, Now this model is discontinued. There are 4 items stock and 6 suppliers of this model on Einklcd. We inputted this model's specification on Apr 19 2012 for the first time, and the latest update on Apr 4 2019. If you want to embed the LCM in your future product, We strongly recommend that you should contact with SAMSUNG or it's agent to learn lateast production and specification detail of LTM190ET01. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
