13.3 Inch 300cd/m² Brightness LCD Monitor with 30pin Connector and WLED Backlight

Name: 13.3 Inch 300cd/m² Brightness LCD Monitor with 30pin Connector and WLED Backlight
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: M133NWF4
Price: 30.00 USD
Availability: InStock

Brand Name:	IVO
Model Number:	M133NWF4
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

KOREA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1920*1080

Brightness:

300cd

Connector:

30pin

Contrast Ratio:

1200:1

Working Life:

15K Hours

Packaging Details:

Industrial packing

Highlight:

portable touch screen monitor

touch screen display monitor

Product Description

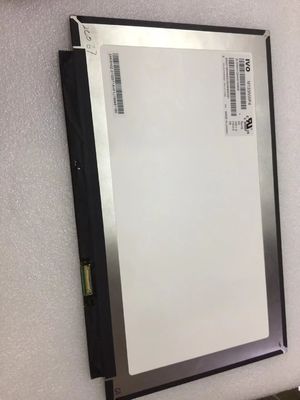

13.3" M133NWF4 LCD Touch Screen Monitor

Product Overview

High-performance 13.3-inch LCD monitor featuring 300 cd/m² brightness and Full HD resolution, designed for laptop computer screen applications with IPS technology and anti-glare treatment.

Manufacturer Specifications

Manufacturer	IVO

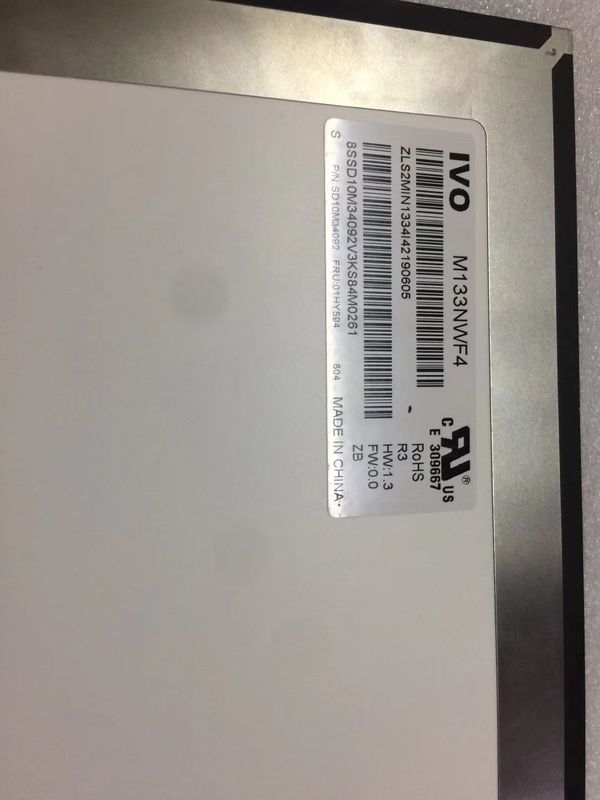

Model Name	M133NWF4 R0 (IVO0536)
Screen Size	13.3 inch
Screen Type	LCM, a-Si TFT-LCD
Resolution	1920 × 1080 (FHD)
Pixel Arrangement	RGB Vertical Stripe
Active Area	293.76 × 165.24 mm (H×V)
Outline Dimensions	300.26 × 187.5 × 2.5 mm (H×V×D)
Surface Treatment	Antiglare
Brightness	300 cd/m² (Typical)
Contrast Ratio	1200:1 (Typical)
Viewing Angle	85/85/85/85 (Typical, CR ≥10)
Response Time	30 ms (Typical, Tr+Td)
Viewing Mode	Symmetry
Operation Mode	IPS, Normally Black, Transmissive
Color Depth	16.7M colors, 72% (CIE1931)
Backlight	WLED, 15K hours lifespan, With LED Driver
Outline Shape	Slim (PCBA Flat, Depth ≤3.2mm)
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	eDP (2 Lanes), Connector, 30 pins
Voltage Supply	3.3V (Typical)
Temperature Ratings	Storage: -20°C to 60°C, Operating: 0°C to 50°C

Key Features

13.3-inch Full HD (1920×1080) display
High brightness 300 cd/m² for clear visibility
IPS technology with wide viewing angles
Anti-glare surface treatment
Slim profile design for space-constrained applications
30-pin eDP interface connectivity
WLED backlight with 15,000-hour lifespan

Quality Assurance: All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
