| Brand Name: | boe |
| Model Number: | MV240WUM-N30 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |
Panel Brand
BOE
Panel Model
MV240WUM-N30
Panel Size
24.0"
Panel Type
a-Si TFT-LCD, LCM
Resolution
1920(RGB)×1200 , WUXGA
Pixel Format
RGB Vertical Stripe
Display Area
518.4(W)×324(H) mm
Bezel Opening
-
Outline Size
546.4(W)×350(H) mm
Surface
Antiglare (Haze 25%), Hard coating (3H)
Brightness
250 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
ADS, Normally Black, Transmissive
Best View on
Symmetry
Response Time
14 (Typ.)(G to G)
Display Colors
16.7M 72% (CIE1931)
Lamp Type
WLED , 30K hours , Without Driver
Frequency
60Hz
Touch Screen
Without
Panel Weight
TBD
Application
Signal Interface
LVDS (2 ch, 8-bit) , 30 pins , Connector
Input Voltage
5.0V (Typ.)
Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

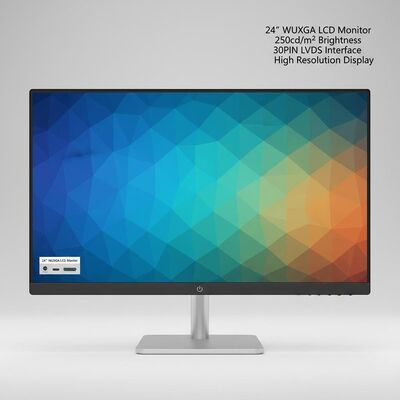

It's 250cd/m2 24inch BOE lcd MODEL for TV and monitor ,TV wall lcd,Destktop computer
All our LCD LED screen monitor module panel products will be full test one by one before sending .
|
|
