BOE 22 Inch Widescreen LCD Computer Monitor with Glass OLED Material and 30 PIN Connector

Brand Name:	boe

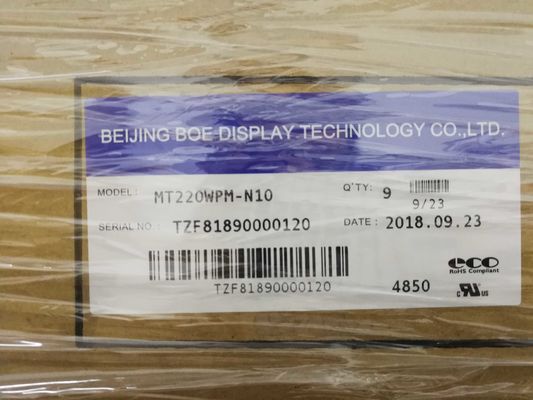

Model Number:	MT220WPM-N10
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

KOREA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1680*1050

Brightness:

250cd

Connector:

30pin

Contrast Ratio:

1000:1

Working Life:

40K Hours

Packaging Details:

Industrial packing

Highlight:

touch screen computer monitor

high resolution touch screen monitor

Product Description

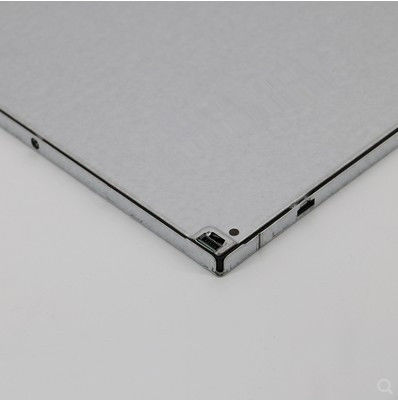

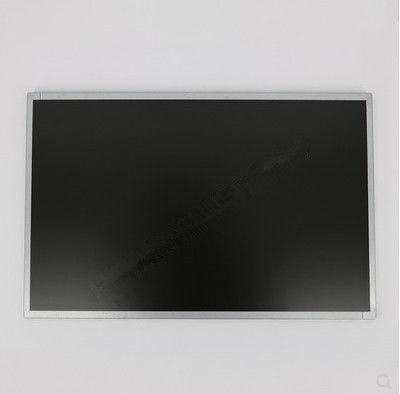

BOE 22-Inch Widescreen LCD Monitor Panel

High-performance 22-inch TFT-LCD display module with WSXGA+ resolution, ideal for television, monitor, and video wall applications.

Technical Specifications

Panel Brand	BOE
Panel Model	MT220WPM-N10
Panel Size	22.0 inches
Resolution	1680 * 1050 (WSXGA+)
Display Area	473.76 * 296.1 mm
Outline Size	493.7 * 320.1 * 10.7 mm
Brightness	250 cd/m² (Typical)
Viewing Angle	85/85/80/80 (CR≥10)
Best View Direction	6 o'clock
Display Colors	16.7 Million (72% CIE1931)
Refresh Rate	60Hz
Weight	1.83 kg (Typical)

Panel Details

Panel Type	a-Si TFT-LCD, LCM
Pixel Format	RGB Vertical Stripe
Bezel Opening	477.7 * 300.1 mm
Surface Treatment	Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio	1000:1 (Typical)
Display Mode	TN, Normally White, Transmissive
Response Time	1.5/3.5 ms (Typical, Tr/Td)
Backlight	3 strings WLED, 40K hours lifespan
Touch Screen	Without

Interface & Environment

Signal Interface	LVDS (2 ch, 8-bit), 30 pins, Connector
Input Voltage	5.0V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-25°C to 60°C

Applications: Ideal for television displays, computer monitors, video wall installations, and desktop computer systems.

Quality Assurance: All LCD monitor panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
