Innolux 15.6" Touch Screen Monitor with 500cd/m2 Brightness and 1366x768 Pixels Resolution

Innolux 15.6

Innolux 15.6" Touch Screen Monitor with 500cd/m2 Brightness and 1366x768 Pixels Resolution

Brand Name:	innolux
Model Number:	G156BGE-L03
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1366*768

Brightness:

500cd

Connector:

30pin

Contrast Ratio:

600:1

Working Life:

50K Hours

Packaging Details:

Industrial packing

Highlight:

smart touch screen monitor

,

high resolution touch screen monitor

Product Description

Innolux 15.6" Touch Screen Computer Monitor

Model: G156BGE-L01/L03 | Resolution: 1366*768 Pixels | Brightness: 500 cd/m²

Panel Specifications

Panel Brand	Innolux
Panel Model	G156BGE-L03
Panel Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)*768, WXGA
Pixel Format	RGB Vertical Stripe
Display Area	344.232(W)*193.536(H) mm
Bezel Opening	347.53(W)*196.84(H) mm
Outline Size	363.8(W)215.98(H)9.8(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	500 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	3/8 (Typ.)(Tr/Td)
Display Colors	16.7M 65% (CIE1931)
Lamp Type	WLED, 50K hours, With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	720/755g (Typ./Max.)
Signal Interface	LVDS (1 ch, 8-bit), 30 pins, Connector
Input Voltage	5.0V (Typ.)
Operating Temperature	0 ~ 60 °C
Storage Temperature	-20 ~ 60 °C

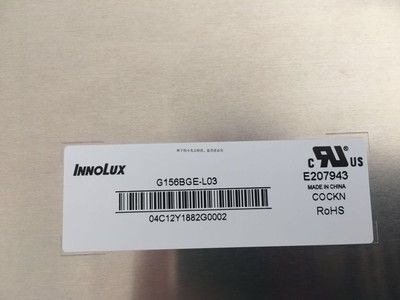

Innolux 15.6" Touch Screen Monitor with 500cd/m2 Brightness and 1366x768 Pixels Resolution 0

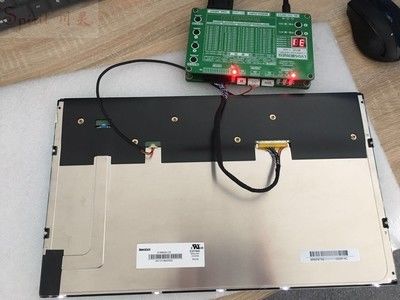

Innolux 15.6" Touch Screen Monitor with 500cd/m2 Brightness and 1366x768 Pixels Resolution 1

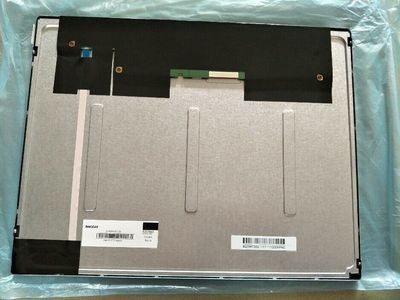

Innolux 15.6" Touch Screen Monitor with 500cd/m2 Brightness and 1366x768 Pixels Resolution 2

Industrial-Grade Features

500 cd/m² high brightness LCD panel specifically designed for industrial applications
Original package of AUO LCD panel ensuring quality and authenticity
Comprehensive individual testing of all LCD LED screen monitor module panel products before shipment
