BOE 11.6" LCD Display Widescreen LCD Computer Monitor with 1366*768 Pixels and 30 Pin Connector 220cd Brightness

Name: BOE 11.6" LCD Display Widescreen LCD Computer Monitor with 1366*768 Pixels and 30 Pin Connector 220cd Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NV116WHM-N41
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NV116WHM-N41
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

262K Colors

Model:

WLED

Style:

Wide Screen High Resolution 1366*768

Brightness:

220cd

Connector:

30pin

Contrast Ratio:

800:1

Working Life:

15K Hours

Packaging Details:

Industrial packing

Highlight:

smart touch screen monitor

high resolution touch screen monitor

Product Description

BOE 11.6" LCD Display Widescreen Monitor

Model: NV116WHM-N41 | 1366*768 WXGA Resolution | 30-pin eDP Interface

Product Overview

High-quality 11.6-inch a-Si TFT-LCD display module with widescreen format, designed for reliable performance in various digital applications including camera and video systems.

Technical Specifications

Brand	BOE
Model	NV116WHM-N41
Diagonal Size	11.6 inch
Display Type	a-Si TFT-LCD, LCM
Resolution	1366(RGB)*768 (WXGA)
Pixel Configuration	RGB Vertical Stripe
Active Area	256.125(H) * 144(V) mm
Outline Dimensions	278(H) * 168(V) * 3(D) mm
Brightness	220 cd/m² (Typical)
Contrast Ratio	800:1 (Typical)
Response Time	30 ms (Typical)
Viewing Angle	80/80/80/80 (CR≥10)
Operating Mode	ADS, Normally Black, Transmissive
Color Support	262K 50% (CIE1931)
Backlight	WLED [9S4P], 15K hours lifespan
Interface	30-pin eDP (2 Lanes) Connector
Power Supply	3.3V (Typical)
Frame Rate	60Hz
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

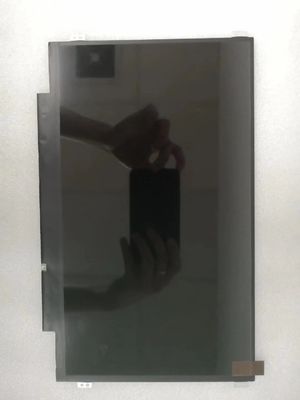

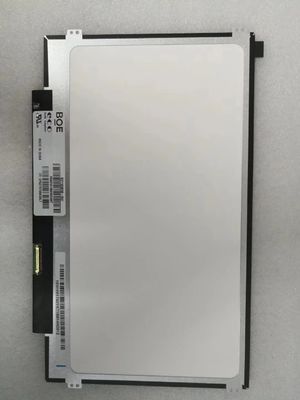

Product Images

Key Features

300 cd/m² high brightness LCD panel optimized for digital camera and video camera applications
Original package AUO LCD panel ensuring quality and compatibility
Comprehensive individual testing of all LCD/LED screen monitor modules before shipment
Wide operating temperature range for versatile environmental conditions
Energy-efficient WLED backlight with extended 15,000-hour lifespan

Quality Assurance

Every LCD display module undergoes thorough individual testing to ensure optimal performance and reliability before delivery to customers.
