19.5 inch Widescreen LCD Computer Monitor with 1600*900 Pixels and 250cd/m2 Brightness

Brand Name:	AUO
Model Number:	M195RTN01.0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

KOREA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1600*900

Brightness:

250cd

Connector:

30pin

Contrast Ratio:

1000:1

Working Life:

30K Hours

Packaging Details:

Industrial packing

Highlight:

smart touch screen monitor

high resolution touch screen monitor

Product Description

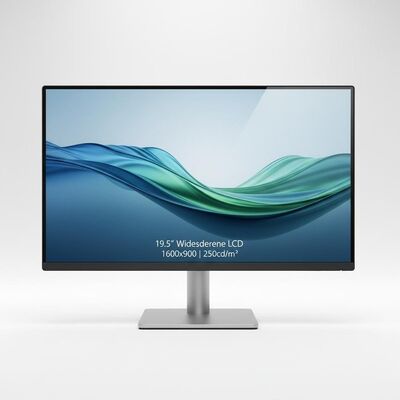

Desktop Widescreen LCD Computer Monitor

High-quality 19.5-inch widescreen LCD display module with HD+ resolution, ideal for computer systems and industrial applications.

Technical Specifications

Manufacturer	AUO	Model Name	M195RTN01.0
Screen Size	19.5 inch	Screen Type	LCM, a-Si TFT-LCD
Resolution	1600*900 (HD+)	Pixel Arrangement	RGB Vertical Stripe
Active Area	433.92 * 236.34 mm	Outline Dimensions	452 * 263 * 11 mm
Surface Treatment	Antiglare, Hard coating (3H)	Luminance	250 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)	Viewing Angle	85/85/80/80 (CR≥10)
Response Time	3.8/1.2 ms (Tr/Td)	Optimal Viewing	6 o'clock position
Display Technology	TN, Normally White, Transmissive	Color Depth	16.7M colors, 72% CIE1931
Backlight System	10S4P WLED, 30K hours lifespan	Weight	1.43 kg (Typical)
Refresh Rate	60Hz	Touchscreen	Without
Signal Interface	LVDS (2 ch, 8-bit), 30-pin connector	Operating Voltage	5.0V (Typical)
Operating Temperature	0°C to 50°C	Storage Temperature	-20°C to 65°C

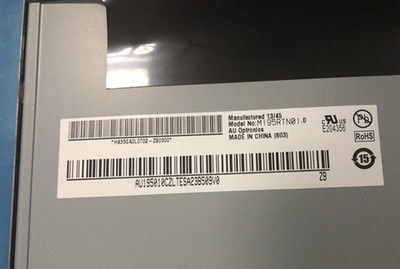

Product Images

Key Features

High-definition 1600*900 resolution for crisp image quality
250 cd/m² brightness ensures excellent visibility
WLED backlight technology with 30,000-hour lifespan
Antiglare hard coating (3H) for reduced reflections
Fast response time of 3.8/1.2 ms (Tr/Td)
Wide viewing angles: 85/85/80/80 degrees

Applications

Compatible with desktop computers, all-in-one systems, laptops, and various industrial display applications.

Quality Assurance: All LCD monitor modules undergo comprehensive individual testing prior to shipment to ensure optimal performance and reliability.
