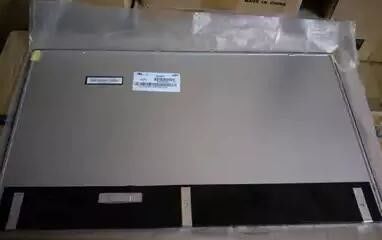

Samsung 23.8 Inch 1920*1080 Pixels 262K Colors Widescreen LCD Display Computer Monitor LTM238HP01

Name: Samsung 23.8 Inch 1920*1080 Pixels 262K Colors Widescreen LCD Display Computer Monitor LTM238HP01
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LTM238HP01
Price: 30.00 USD
Availability: InStock

Brand Name:	samsung
Model Number:	LTM238HP01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

japan

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

262 Colors

Model:

WLED

Style:

Wide Screen High Resolution 1920*1080

Brightness:

250cd

Connector:

N/A

Contrast Ratio:

N/A

Working Time:

15k Hours

Packaging Details:

Industrial packing

Highlight:

smart touch screen monitor

high resolution touch screen monitor

Product Description

262K Colors 30 Pin Widescreen Computer Monitor LTM238HP01 1920*1080 Pixels Samsung 23.8"

High-performance 23.8-inch widescreen LCD monitor module from Samsung, featuring Full HD resolution and advanced display technology for industrial and commercial applications.

Key Specifications

Brand	SAMSUNG
Model	LTM238HP01
Diagonal Size	23.8 inch
Display Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB) * 1080 [FHD]
Pixel Configuration	RGB Vertical Stripe
Active Area	527.04(H) * 296.46(V) mm
Contrast Ratio	3000:1 (Typ.)
Response Time	14ms (Typ.)(G to G)
Viewing Angle	89/89/89/89 (Typ.)(CR ≥10)
Operating Mode	PVA, Normally Black, Transmissive
Color Support	16.7M 72% (CIE1931)
Backlight	WLED
Frame Rate	60Hz
Touch Panel	Without

Interface & Power

Interface Type: 30 pins LVDS (2 ch, 8-bit), Connector
Power Supply: 5.0V (Typ.)

Environmental Specifications

Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 60°C

All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
