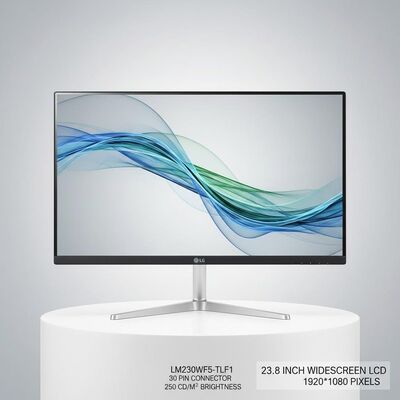

LG 23.8 Inch Widescreen LCD Monitor with 1920*1080 Pixels 30 Pin LVDS and 250cd/m2 Brightness

Brand Name:	LG
Model Number:	LM230WF5-TLF1
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1080

Style:

30PIN IPS

Brightness:

250 CD/M2

Color:

16.7M

Contrast Ratio:

1000 :1

Packaging Details:

Industrial packing

Highlight:

smart touch screen monitor

high resolution touch screen monitor

Product Description

LG 23.8 Inch Widescreen LCD Computer Monitor

High-performance FHD display with 1920*1080 resolution, designed for professional and industrial applications.

Display Specifications

Brand	LG Display
Diagonal Size	23.0 inch
Pixel Format	1920(RGB)*1080 [FHD]
Active Area	509.184(H)*286.416(V) mm
Bezel Area	513.8(H)*291.0(V) mm
Luminance	250 cd/m² (Typ.)
View Direction	6 o'clock
Viewing Angle	85/85/75/85 (Typ.)(CR≥10)
Support Color	16.7M 72% (CIE1931)
Weight	1.98/2.08Kgs (Typ./Max.)
Frame Rate	60Hz

Model Details

Model	LM230WF5-TLF1
Type	a-Si TFT-LCD, LCM
Configuration	RGB Vertical Stripe
Outline Dimensions	533.2(H)321(V)10.7(D) mm
Treatment	Antiglare, Hard coating (3H)
Contrast Ratio	1000:1 (Typ.) (TM)
Response Time	1.3/3.7 (Typ.)(Tr/Td)
Operating Mode	TN, Normally White, Transmissive
Light Source	WLED [2 strings], 30K hours, W/O Driver
Touch Panel	Without

Technical Interface

Interface Type	30 pins LVDS (2 ch, 8-bit), Connector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C Storage Temperature: -20 ~ 60 °C

Quality Assurance: All original products undergo comprehensive testing before shipment.

Detailed Specifications: Complete technical documentation available upon request via email.
