1920*1080 Pixels 250CD/M2 30 Pin Desktop Monitor LCD Display for All In One Computer

Name: 1920*1080 Pixels 250CD/M2 30 Pin Desktop Monitor LCD Display for All In One Computer
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: HR236WU1-300
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	HR236WU1-300
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

KOREA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1920*1080

Brightness:

250cd

Connector:

30pin

Contrast Ratio:

1000:1

Packaging Details:

Industrial packing

Highlight:

smart touch screen monitor

high resolution touch screen monitor

Product Description

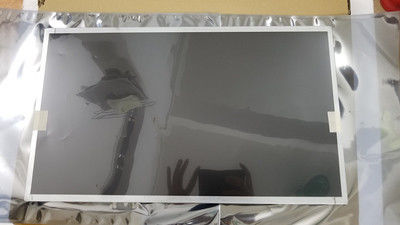

23.6" FHD LCD Display Module HR236WU1-300

High-quality 1920*1080 pixel desktop monitor LCD display designed for All-in-One computers, featuring BOE panel technology with excellent viewing characteristics and reliable performance.

Key Specifications

Panel Model	HR236WU1-300
Panel Size	23.6 inches
Resolution	1920(RGB)*1080 (FHD)
Brightness	250 cd/m² (Typical)
Contrast Ratio	1000:1 (Typical)
Viewing Angle	89/89/89/89 (CR≥10)
Response Time	14ms (G to G, Typical)
Display Colors	16.7 Million (sRGB)
Signal Interface	LVDS (2 ch, 8-bit), 30 pins
Input Voltage	5.0V (Typical)

Technical Features

Panel Type: a-Si TFT-LCD, LCM
Display Mode: ADS, Normally Black, Transmissive
Surface Treatment: Antiglare (Haze 25%) with Hard coating (3H)
Backlight: 4 strings WLED, 30,000 hours lifespan
Refresh Rate: 60Hz
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 60°C
Panel Weight: 2.20 kg (Typical)

Physical Dimensions

Display Area	521.28mm (W) * 293.22mm (H)
Bezel Opening	525.22mm (W) * 297.22mm (H)
Outline Size	544.8mm (W) * 320.5mm (H) * 10.5mm (D)

Quality Assurance: All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
