Samsung 20 Inch Widescreen LCD Monitor with 1600*900 Pixels and 30 Pin Connector

Samsung 20 Inch Widescreen LCD Monitor with 1600*900 Pixels and 30 Pin Connector

Brand Name:	samsung
Model Number:	LTM200KT12
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

KOREA

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

16.7M Colors

Model:

WLED

Style:

Wide Screen High Resolution 1600*900

Brightness:

250cd

Connector:

30pin

Contrast Ratio:

1000:1

Packaging Details:

Industrial packing

Highlight:

smart touch screen monitor

high resolution touch screen monitor

Product Description

Samsung 20 Inch Widescreen LCD Computer Monitor

Product Overview

High-performance 20-inch widescreen LCD monitor module with 1600*900 HD+ resolution, ideal for industrial and commercial applications requiring reliable display performance.

Technical Specifications

Manufacturer	SAMSUNG	Model Name	LTM200KT12
Screen Size	20.0 inch	Screen Type	LCM, a-Si TFT-LCD
Resolution	1600(RGB)*900 (HD+)	Pixel Arrangement	RGB Vertical Stripe
Active Area	442.8 * 249.075 mm (H*V)	Outline Dimensions	462.8 * 272 * 10.3 mm (HVD)
Bezel Area	446.8 * 253.2 mm (H*V)	Surface Treatment	Antiglare (Haze 25%), Hard coating (3H)
Brightness	250 cd/m² (Typ.)	Contrast Ratio	1000 : 1 (Typ.)
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)	Response Time	5 ms (Typ.)(G to G)
Optimal Viewing	6 o'clock	Display Technology	TN, Normally White, Transmissive
Color Depth	16.7M 72% (CIE1931)	Backlight System	9S3P WLED, 40K hours, No Driver
Weight	1.70 kg (Max.)	Refresh Rate	60Hz
Touchscreen	Without	Signal Interface	LVDS (2 ch, 8-bit), Connector, 30 pins
Operating Voltage	5.0V (Typ.)	Temperature Range	Operating: 0~50°C, Storage: -20~60°C

Key Features

Widescreen 20-inch display with HD+ 1600*900 resolution
High contrast ratio of 1000:1 for sharp image quality
Fast 5ms response time suitable for dynamic content
WLED backlight with 40,000 hours lifespan
30-pin LVDS interface for reliable connectivity
Antiglare surface treatment with hard coating
Wide operating temperature range for industrial use

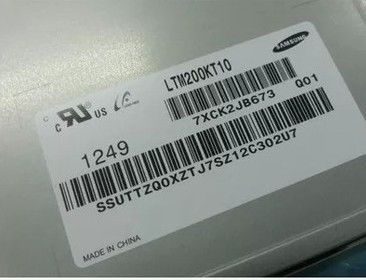

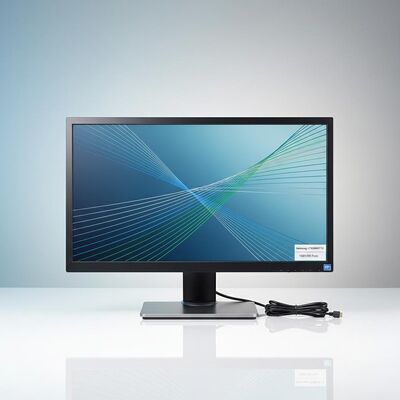

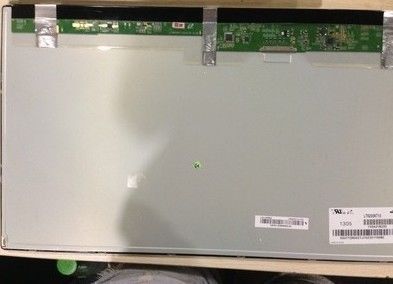

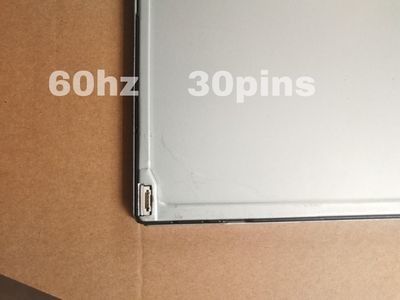

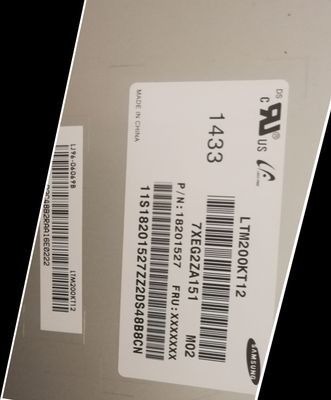

Product Images

Quality Assurance: All our LCD/LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
