AUO 3 Inch A030FL01 V2 LCD Display Panel with 480*272 Resolution and 300 CD/M2 Brightness for PMP Pocket TV MP4

Name: AUO 3 Inch A030FL01 V2 LCD Display Panel with 480*272 Resolution and 300 CD/M2 Brightness for PMP Pocket TV MP4
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: A030FL01 V2
Price: 30.00 USD
Availability: InStock

Brand Name:	auo
Model Number:	A030FL01 V2
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

480*272

Style:

70PIN IPS

Brightness:

300 CD/M2

Color:

16.7M

Contrast Ratio:

500 :1

Packaging Details:

Industrial packing

Highlight:

touch screen desktop monitor

portable touch screen monitor

Product Description

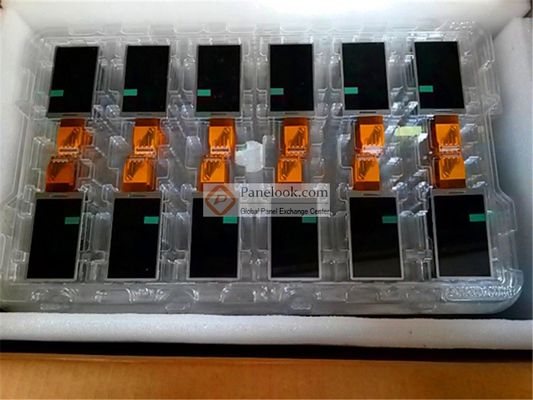

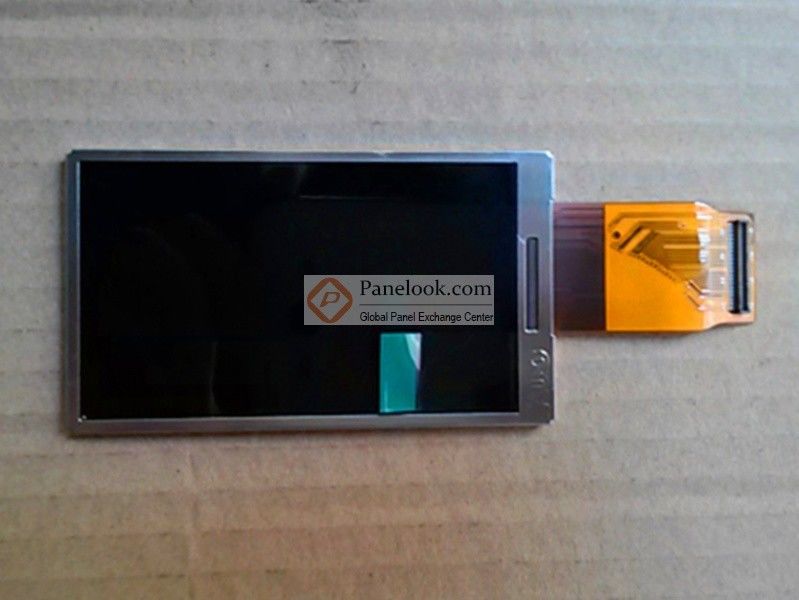

AUO 3 Inch A030FL01 V2 LCD Display Panel

Product Overview

High-quality 3.0-inch TFT-LCD display module with 60Hz refresh rate, designed for portable media players, pocket TVs, and MP4 devices.

Manufacturer Specifications

Manufacturer	AUO
Model Name	A030FL01 V2
Screen Size	3.0 inch
Screen Type	LCM, a-Si TFT-LCD
Pixel Configuration	480(RGB)×272 (WQVGA), RGB Vertical Stripe
Color Depth	16.7M colors

Performance Characteristics

Refresh Rate	60Hz
Luminance	300 cd/m² (Typical)
Contrast Ratio	500:1 (Typical)
Response Time	15/10 ms (Typical, Tr/Td)
Viewing Angle	80/80/80/80 (Typical, CR≥10)
Work Mode	ATR-MVA, Normally Black, Transflective

Physical Dimensions

Outline Dimensions	76.12 × 43.7 mm (H×V×D)
Active Area	65.52 × 37.128 mm (H×V)
Bezel Area	68.12 × 39.73 mm (H×V)
Weight	22.2g (Typical)

Electrical Specifications

Voltage Supply	3.3/3.3V (Typical)(VDD/VDDIO)
Signal Type	Parallel RGB (1 channel, 8-bit) + SPI, 70-pin connector
Backlight	4S1P WLED with symmetrical viewing

Environmental Ratings

Operating Temperature	0°C to 60°C
Storage Temperature	-25°C to 80°C

Applications

Portable Media Players (PMP)
Pocket TVs
MP4 Players
LCD Modules

Quality Assurance: All original products undergo comprehensive individual testing before shipment to customers.

Detailed Specifications: Complete technical specifications available upon request. Please contact us for detailed documentation via email.
