21.5 Inch LCD Monitor with 1920x1080 Resolution and 30pin Connector for Desktop Display

Name: 21.5 Inch LCD Monitor with 1920x1080 Resolution and 30pin Connector for Desktop Display
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: M215HNE-L30
Price: 30.00 USD
Availability: InStock

Brand Name:	CHIMEI INNOLUX
Model Number:	M215HNE-L30
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Oled

Color:

Black Or Silver

Model:

WLED

Style:

Wide Screen High Resolution 1920*1080

Brightness:

250cd

Connector:

30pin

Contrast Ratio:

3000:1

Packaging Details:

Industrial packing

Highlight:

smart touch screen monitor

high resolution touch screen monitor

Product Description

CHIMEI/Innolux Widescreen LCD Computer Monitors 21.5" Desktop Display M215HNE-L30 Full Viewing Angle

Product Overview

High-performance 21.5-inch widescreen LCD monitor module featuring Full HD resolution and Super MVA technology for exceptional viewing angles and image quality.

Technical Specifications

Brand	Innolux
Model	M215HNE-L30 Rev.C3
Diagonal Size	21.5 inch
Display Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB) * 1080 [FHD]
Pixel Configuration	RGB Vertical Stripe
Active Area	476.064(H) * 267.786(V) mm
Outline Dimensions	495.6(H) * 292.2(V) * 12(D) mm
Bezel Area	479.84(H) * 271.3(V) mm
Surface Treatment	Antiglare, Hard coating (3H)
Luminance	250 cd/m² (Typ.)
Contrast Ratio	3000:1 (Typ.) (TM)
Response Time	15/5 (Typ.)(Tr/Td)
Viewing Angle	89/89/89/89 (Typ.)(CR ≥10)
Operating Mode	Super MVA, Normally Black, Transmissive
Color Support	16.7M 72% (CIE1931)
Light Source	WLED [4 strings], 40K hours, W/O Driver
Weight	1.80/1.85Kgs (Typ./Max.)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	30 pins LVDS (2 ch, 8-bit), Connector
Power Supply	5.0V (Typ.)
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C

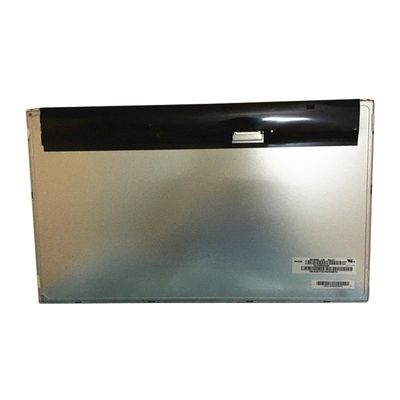

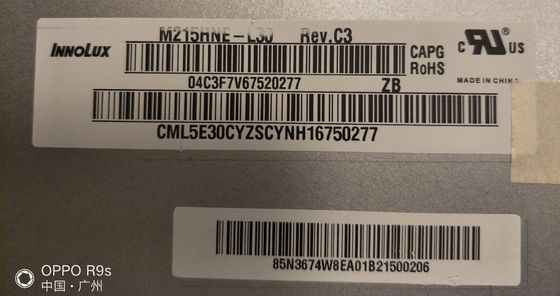

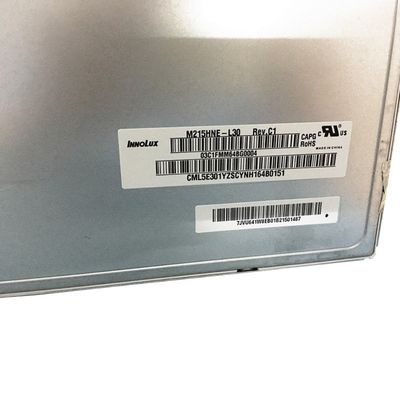

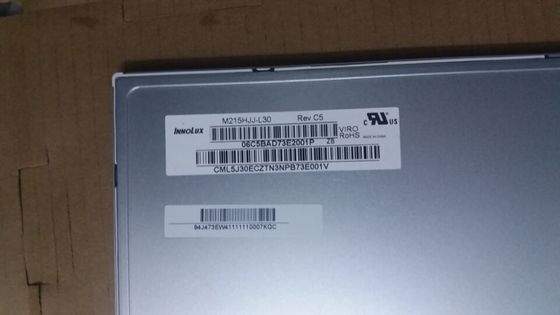

Product Images

Quality Assurance: All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
