Sharp LQ084V1DG21 8.4 Inch LCD Display with 640*480 Pixels 262K Colors and 50K Hours Working Life Industrial Touch Screen Monitor

Name: Sharp LQ084V1DG21 8.4 Inch LCD Display with 640*480 Pixels 262K Colors and 50K Hours Working Life Industrial Touch Screen Monitor
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: LQ084V1DG21
Price: 30.00 USD
Availability: InStock

Brand Name:	SHARP
Model Number:	LQ084V1DG21
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass

Brightness:

250CCD/M2

Resolution:

640*480pixels

Contrast Ratio:

1000:1

Color:

262k

Working Life:

50K Hours

Connector:

30P

Touch Panel:

Without

Packaging Details:

Industrial packing

Highlight:

touch screen desktop monitor

touch screen display monitor

Product Description

LQ084V1DG21 Touch Screen Display

Sharp 8.4-inch LG-Philip LCD monitor featuring 640×480 pixel resolution, 31-pin interface, and 262K colors. Designed for industrial equipment with 50,000 hours working life.

Product Specifications

Manufacturer	Sharp
Model Name	LQ084V1DG21
Screen Size	8.4 inch
Screen Type	LCM, a-Si TFT-LCD
Pixel Number	640(RGB) × 480 (VGA)
Arrangement	RGB Vertical Stripe
Active Area	170.88 × 129.6 mm (H×V)
Outline Dimensions	216 × 152.4 × 12.5 mm (H×V×D)
Bezel Area	175.9 × 134.6 mm (H×V)
Surface Treatment	Antiglare (Haze 28%), Hard coating (3H), Antireflection
Luminance	300 cd/m² (Typ.)
Contrast Ratio	250:1 (Typ.) (TM)
Viewing Angle	55/55/55/40 (Typ.)(CR ≥10)
Response Time	20/40 (Typ.)(Tr/Td) ms
Optimal Viewing	12 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K
Backlight	1 pcs CCFL, 50K hours, No Driver
Mass	410 ±20g
Refresh Rate	-
Touchscreen	Without
Signal Type	Parallel RGB (1 ch, 6-bit), Connector, 31 pins
Voltage Supply	3.3/5.0V (Typ.)(VCC)
Temperature Ratings	Storage: -25°C to 70°C, Operating: 0°C to 60°C

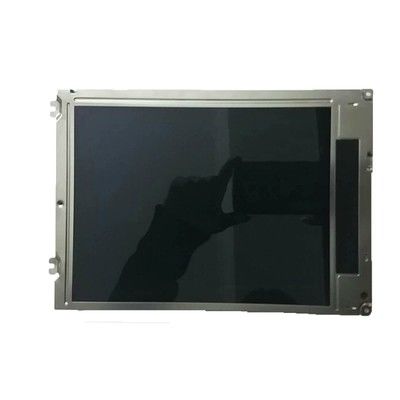

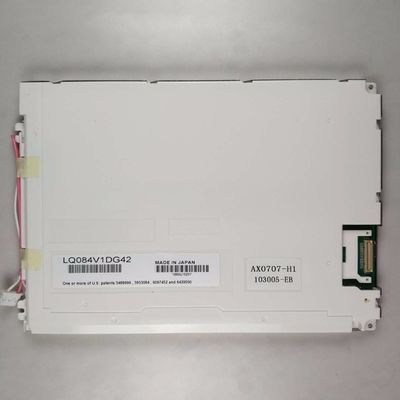

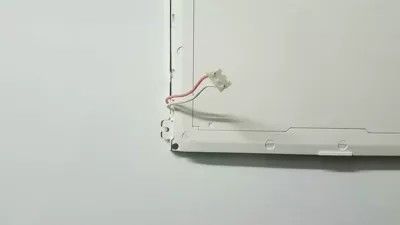

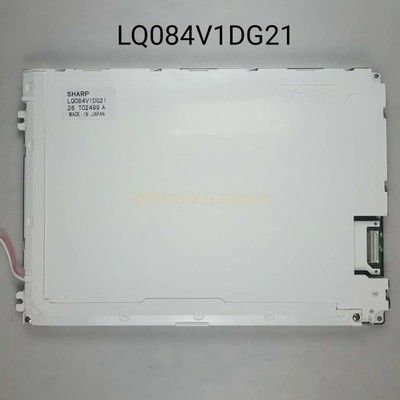

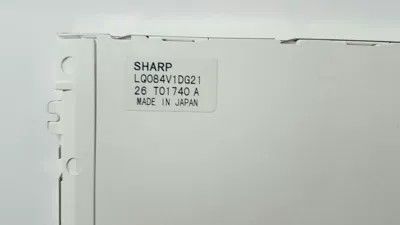

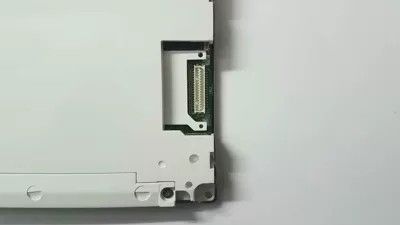

Product Images

Quality Assurance

All original products undergo comprehensive testing before shipment
Detailed specification documents available upon request via email
