15 Inch Size 250 CCD Brightness LCD Monitor with 1024 x 768 Pixels Touch Screen Display

Name: 15 Inch Size 250 CCD Brightness LCD Monitor with 1024 x 768 Pixels Touch Screen Display
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: CLAA150XP01
Price: 30.00 USD
Availability: InStock

Brand Name:	CPT
Model Number:	CLAA150XP01
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W, Western Union, MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*1080pixels

Style:

WLED 30P

Brightness:

250 CCD M2

Color:

16.7M

Contrast Ratio:

3000 :1

Working Life:

40K Hours

Packaging Details:

Industrial packing

Highlight:

touch screen display monitor

portable touch screen monitor

Product Description

250 CCD 20 Pin CPT LCD Touch Screen Monitor

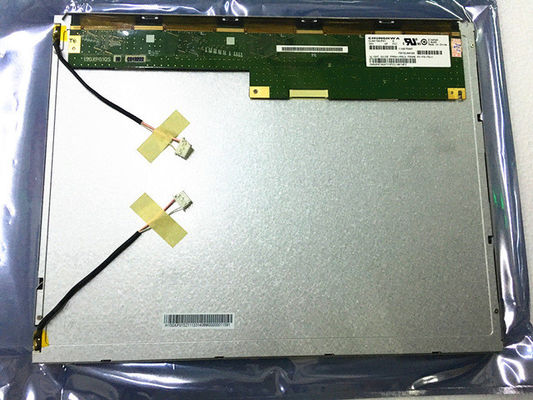

High-quality 15-inch CPT LCD display model CLAA150XP01 with 1024×768 XGA resolution, designed as a reliable replacement monitor for PC systems.

Key Features

15-inch diagonal LCD display with XGA resolution (1024×768 pixels)
250 CCD 20-pin LVDS interface configuration
Model CLAA150XP01 replacement monitor
High brightness and contrast ratio for clear visibility

Technical Specifications

Brand	CPT
Diagonal Size	15.0 inch
Pixel Format	1024(RGB)×768 [XGA]
Active Area	304.128(H)×228.096(V) mm
Bezel Area	307.4(H)×231.3(V) mm
Luminance	250 cd/m² (Typ.)
View Direction	6 o'clock
Viewing Angle	70/70/60/65 (Typ.)(CR≥10)
Support Color	16.2M 65% (CIE1931)
Weight	1.06Kgs (Typ.)
Frame Rate	60Hz

Model Details - CLAA150XP01

Type	a-Si TFT-LCD, LCM
Configuration	RGB Vertical Stripe
Outline Dimensions	326.5(H)×253.5(V)×11.5(D) mm
Treatment	Antiglare
Contrast Ratio	500:1 (Typ.) (TM)
Response Time	5/11 (Typ.)(Tr/Td)
Operating Mode	TN, Normally White, Transmissive
Light Source	CCFL [2 pcs], 40K hours, W/O Driver
Designed For	Without Touch Panel
Interface Type	20 pins LVDS (1 ch, 8-bit), Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0~50°C; Storage Temperature: -20~60°C

All products undergo thorough individual inspection before shipment to ensure quality and performance standards.
