Innolux 10.1 Inch Touchscreen Display with 1280*800 Resolution and 350 cd/m² Brightness LCD Monitor

Innolux 10.1 Inch Touchscreen Display with 1280*800 Resolution and 350 cd/m² Brightness LCD Monitor

Innolux 10.1 Inch Touchscreen Display with 1280*800 Resolution and 350 cd/m² Brightness LCD Monitor

Brand Name: Innolux
Model Number: EJ101IA-01G
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Resolution:
1280*800pixels
Style:
WLED 40P
Brightness:
350 CCD M2
Color:
16.7M
Contrast Ratio:
800 :1
Working Life:
15K Hours
Packaging Details:
Industrial packing
Highlight:

touch screen desktop monitor

,

portable touch screen monitor

Product Description
Innolux 10.1 Inch Raspberry Touchscreen, EJ101IA 01G Touch Screen Display Monitor
Product Overview

High-quality 10.1-inch LCD display module designed for Raspberry Pi applications, featuring excellent visual performance and industrial-grade reliability.

  • Innolux 10.1-inch Raspberry touch screen LCD monitor
  • Model EJ101IA-01G LCD display
  • 1280×800 pixel resolution (WXGA)
  • 350 cd/m² brightness
  • 40-pin LVDS interface
Technical Specifications
Brand Innolux
Model EJ101IA-01G
Diagonal Size 10.1 inch
Type a-Si TFT-LCD, LCM
Pixel Format 1280(RGB) ×800 [WXGA]
Active Area 216.96(H) ×135.6(V) mm
Outline Dimensions 229.46(H) ×149.1(V) ×4.66(D) mm
Luminance 350 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Response Time 10/15 (Typ.)(Tr/Td)
Viewing Angle 85/85/85/85 (Typ.)(CR ≥10)
Operating Mode IPS, Normally Black, Transmissive
Support Color 16.7M 50% (CIE1931)
Light Source WLED [3S10P], 15K hours, W/O Driver
Weight 183g (Typ.)
Frame Rate 60Hz
Touch Panel Without
Interface Type 40 pins LVDS (1 ch, 8-bit), Connector
Power Supply 2.5/8.2/22/-7V (Typ.)(VDD/AVDD/VGH/VGL)
Operating Temperature -10 ~ 50 °C
Storage Temperature -20 ~ 60 °C

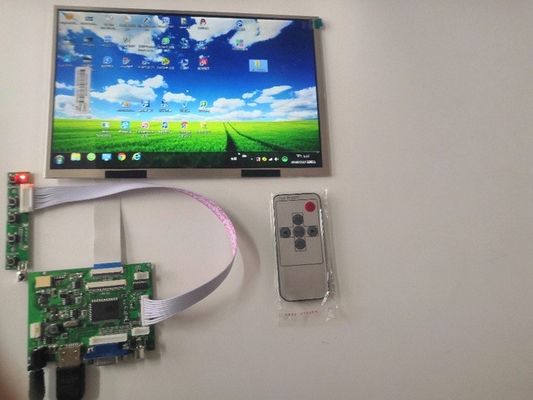

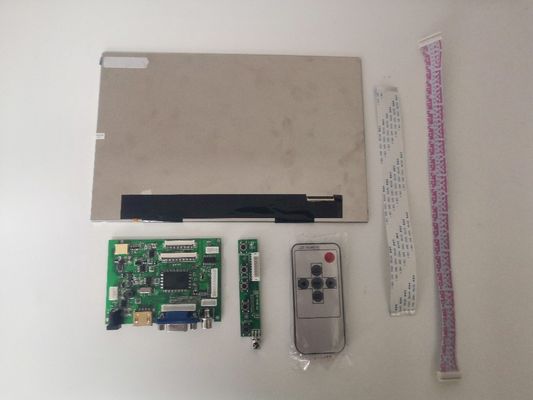

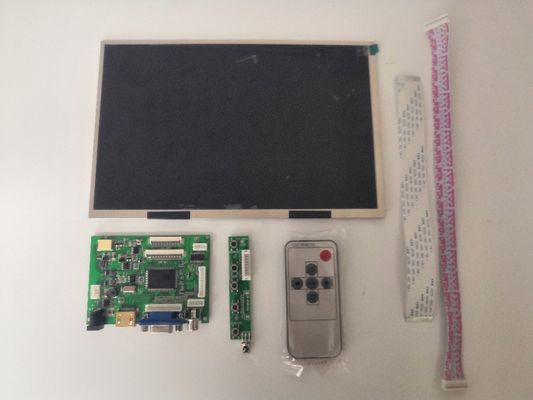

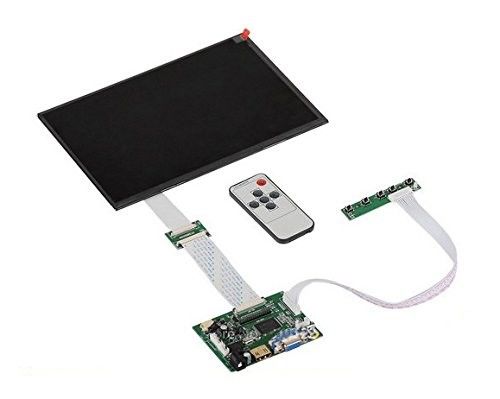

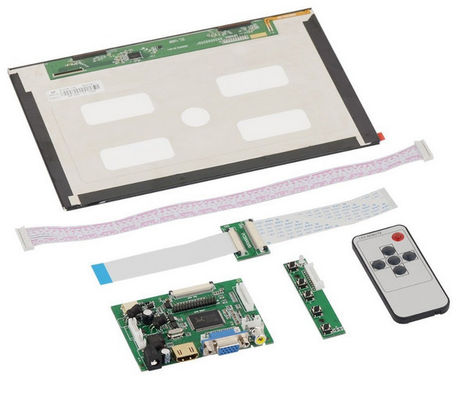

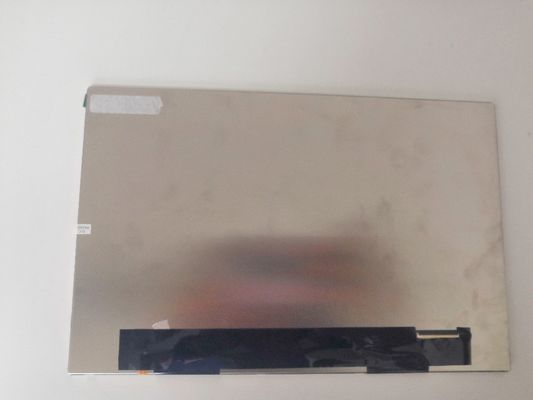

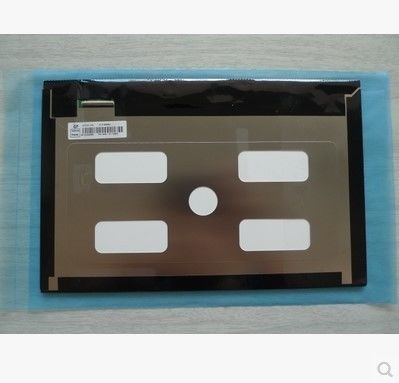

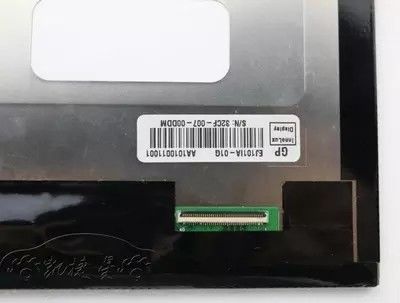

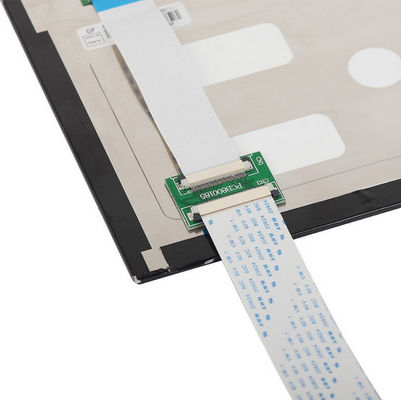

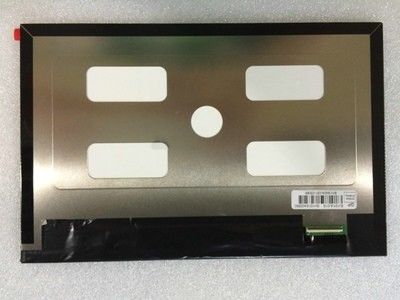

Product Image
Innolux 10.1 Inch Touchscreen Display with 1280*800 Resolution and 350 cd/m² Brightness LCD Monitor 0
Quality Assurance: All products undergo individual inspection before shipment to ensure optimal performance and reliability.
