| Brand Name: | Innolux |
| Model Number: | EJ101IA-01G |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

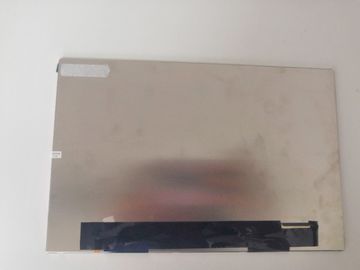

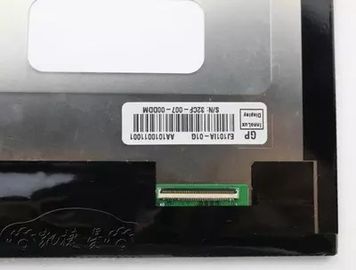

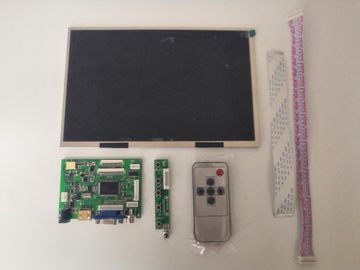

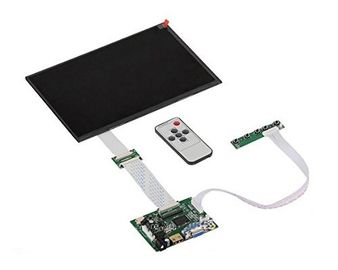

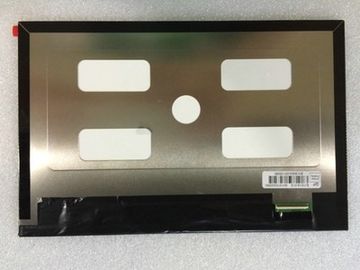

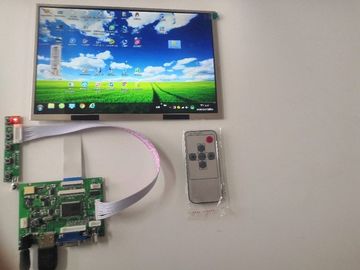

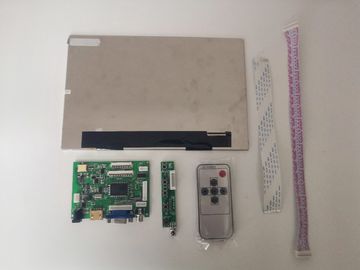

Innolux 10.1inch Raspberry touch screen lcd monitor EJ101IA-01G lcd display model 1280*800 pixels 350 CCD 40P
Brand
Innolux
Model
EJ101IA-01G
Diagonal Size
10.1 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
1280(RGB)×800 [WXGA]
Configuration
RGB Vertical Stripe
Active Area
216.96(H)×135.6(V) mm
Outline Dim.
229.46(H)×149.1(V) ×4.66(D) mm
Bezel Area
-
Treatment
Hard coating
Luminance
350 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (TM)
View Direction
Symmetry
Response Time
10/15 (Typ.)(Tr/Td)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Operating Mode
IPS, Normally Black, Transmissive
Support Color
16.7M 50% (CIE1931)
Light Source
WLED [3S10P] , 15K hours , W/O Driver
Weight
183g (Typ.)
Designed For
Frame Rate
60Hz
Touch Panel
Without
Interface Type
40 pins LVDS (1 ch, 8-bit) , Connector
Power Supply
2.5/8.2/22/-7V (Typ.)(VDD/AVDD/VGH/VGL)
Environment
Operating Temperature: -10 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
|
|
