31P 430CCD WUXGA Widescreen LCD Computer Monitor with 1200*1920pixels High Resolution Transmissive Display

Name: 31P 430CCD WUXGA Widescreen LCD Computer Monitor with 1200*1920pixels High Resolution Transmissive Display
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: B080UAN01.3
Price: 30.00 USD
Availability: InStock

Brand Name:	AUO
Model Number:	B080UAN01.3
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1200*1920pixels

Style:

WUXGA 31P

Brightness:

430 CCD M2

Color:

16.7M

Contrast Ratio:

1000 :1

Working Life:

12K Hours

Packaging Details:

Industrial packing

Highlight:

smart touch screen monitor

high resolution touch screen monitor

Product Description

31P 430CCD / M2 Widescreen LCD Computer Monitors High Resolution Transmissive

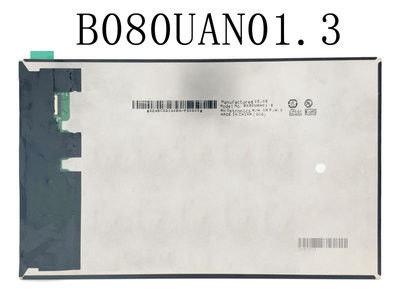

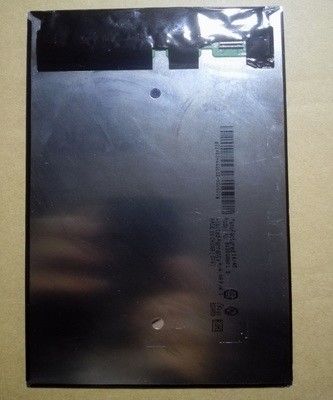

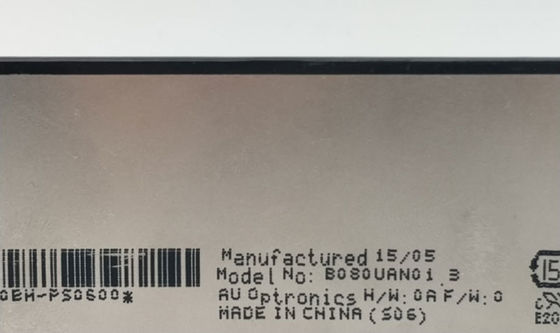

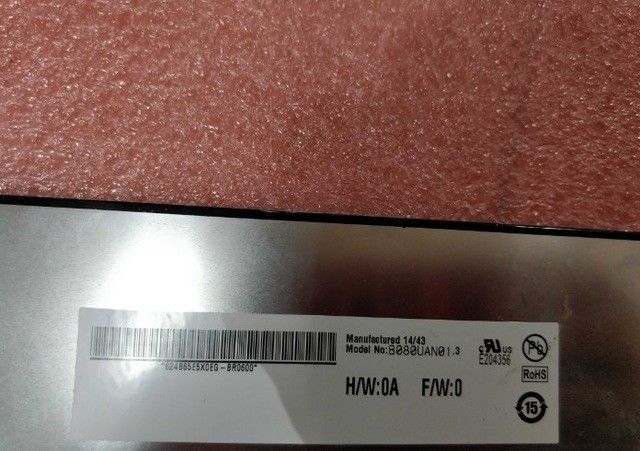

AUO 8-inch small LCD computer monitor B080UAN01.3 featuring 1200*1920 WUXGA resolution with transmissive display technology.

Panel Specifications

Panel Brand	AUO	Panel Model	B080UAN01.3
Panel Size	8.0 inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1200(RGB)*1920, WUXGA	Pixel Format	RGB Vertical Stripe
Display Area	107.64(W)*172.224(H) mm	Bezel Opening	-
Outline Size	113.8(W)182.86(H)3.48(D) mm	Surface	Hard coating
Brightness	430 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Display Mode	AHVA, Normally Black, Transmissive
Best View on	Symmetry	Response Time	25 (Typ.)(Tr+Td)
Display Colors	16.7M 60% (CIE1931)	Lamp Type	7S3P WLED, 12K hours, With LED Driver
Frequency	60Hz	Touch Screen	Without
Weight	92.0g (Max.)	Application	-

Interface & Electrical Specifications

Signal Interface	MIPI (4 data lanes), 31 pins, Connector
Input Voltage	3.3V (Typ.)

Environmental Specifications

Operating Temperature	-10°C to 60°C
Storage Temperature	-30°C to 70°C

All products undergo individual inspection before shipment to ensure quality and performance standards.
