15 Inch Digital Signage Lcd Monitor DV150X0M-N16 16.7M Color 1024*768pixels 600 Cd/M² 20 Pin

Customer Reviews
We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

I'm Online Chat Now

15 Inch Digital Signage Lcd Monitor DV150X0M-N16 16.7M Color 1024*768pixels 600 Cd/M² 20 Pin

15 Inch Digital Signage Lcd Monitor DV150X0M-N16 16.7M Color 1024*768pixels 600 Cd/M² 20 Pin
15 Inch Digital Signage Lcd Monitor DV150X0M-N16 16.7M Color 1024*768pixels 600 Cd/M² 20 Pin 15 Inch Digital Signage Lcd Monitor DV150X0M-N16 16.7M Color 1024*768pixels 600 Cd/M² 20 Pin

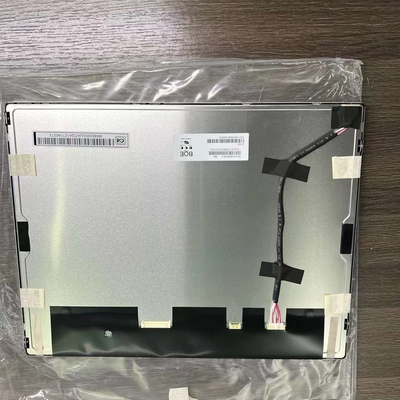

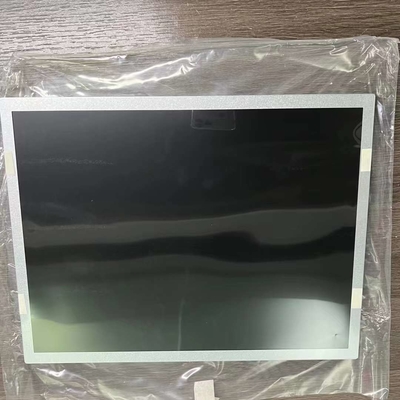

Large Image :  15 Inch Digital Signage Lcd Monitor DV150X0M-N16 16.7M Color 1024*768pixels 600 Cd/M² 20 Pin

Product Details:
Place of Origin: China
Brand Name: BOE
Certification: Rohs,CE,FCC
Model Number: DV150X0M-N16
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week

15 Inch Digital Signage Lcd Monitor DV150X0M-N16 16.7M Color 1024*768pixels 600 Cd/M² 20 Pin

Description
Quality: Brand New Original Package: Original Industrial Packing
Material: Glass Led Color: Black Or Silver,16.7M Color For Display
Model: WLED,LCD Style: 1024*768pixels
Contrast Ratio: 1000:1 Type: Lcm
Working Voltage: 3.3V Size: 15inch
Working Life: 50khours
High Light:

15 Inch Digital Signage Lcd Monitor

,

DV150X0M-N16 Digital Signage Lcd Monitor

BOE Digital signage lcd model 15inch DV150X0M-N16 16.7M Color 1024*768pixels 600 cd/m² 20pin



The DV150X0M-N16 is a 15.0 inch diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by einklcd in the following: Landscape / Portrait, Hight Brightness, WLED Backlight, Life ≥ 50K hours, With LED Driver, Matte . Based on its features, einklcd recommend that this model be applied to Digital Signage etc. According to the information stored in einklcd this model mass production on Q3, 2020, Now this model is in production. We inputted this model's specification on Dec 8 2020 for the first time, and the latest update on Dec 15 2022. If you want to embed DV150X0M-N16 LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail. The DV150X0M-N16 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.





Brand
BOE
Model P/N
DV150X0M-N16
Diagonal Size
15.0"
Panel Type
a-Si TFT-LCD, LCM
Resolution
1024(RGB)×768, XGA 85PPI
Pixel Format
RGB Vertical Stripe
Active Area
304.128(W)×228.096(H) mm
Bezel Opening
306.13(W)×230.1(H) mm
  • Outline Size
    326.5(W)×253.5(H) ×10.4(D) mm
  • Surface
    Antiglare (Haze 25%), Hard coating (3H)
  • Brightness
    600 cd/m² (Typ.)
  • Contrast Ratio
    1000:1 (Typ.) (TM)
  • Viewing Angle
    89/89/89/89 (Typ.)(CR≥10)
  • Display Mode
    ADS, Normally Black, Transmissive
  • Best View on
    Symmetry
  • Response Time
    30 (Typ.)(Tr+Td)
  • Display Colors
    16.7M 72% NTSC
  • Lamp Type
    12S4P WLED , 50K hours , With LED Driver
  • Frequency
    60Hz
  • Touch Screen
    Without
  • Panel Weight
    730g
  • Application
    15 Inch Digital Signage Lcd Monitor DV150X0M-N16 16.7M Color 1024*768pixels 600 Cd/M² 20 Pin 0
  • Signal Interface
  • LVDS (1 ch, 8-bit) , 20 pins Connector
  • Input Voltage
  • 3.3V (Typ.)
  • Environment
  • Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

15 Inch Digital Signage Lcd Monitor DV150X0M-N16 16.7M Color 1024*768pixels 600 Cd/M² 20 Pin 1
