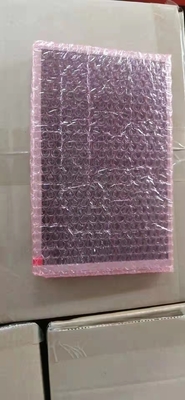

TIANMA 10.1 inch industrial and Medical lcd panel WXGA 149PPI 1080x800pixels Lcd Display Panel 500cd/M2 TM101JDHG30

TM101JDHG30 is a 10.1" diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd. (hereafter called TIANMA), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by einklcd in the following: WLED Backlight, Life ≥ 50K hours, With LED Driver, Reverse I/F, 6/8 bit . Based on its features, einklcd recommend that this model be applied to Industrial, Medical Imaging, VOIP Phone etc.Built-in ST5821CA*3 + ST5804CA*1 driver IC. According to the information stored in einklcd this model mass production on Q3, 2016, Now this model is in production.  We inputted this model's specification on Nov 18 2015 for the first time, and the latest update on Sep 27 2019. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with TIANMA or it's agent to learn lateast production and specification detail of TM101JDHG30. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand

TIANMA

Model

TM101JDHG30

Diagonal Size

10.1 inch

Type

a-Si TFT-LCD, LCM

Pixel Format

1280(RGB)×800 [WXGA] 149PPI

Configuration

RGB Vertical Stripe

Active Area

216.96(H)×135.6(V) mm

Outline Dim.

231.22(H)×150.6(V) ×6.6(D) mm

Bezel Area

219.96(H)×138.6(V) mm

Treatment

Hard coating

Luminance

500 cd/m² (Typ.)

Contrast Ratio

800:1 (Typ.) (TM)

View Direction

Symmetry

Response Time

10/15 (Typ.)(Tr/Td)

Viewing Angle

85/85/85/85 (Typ.)(CR≥10)

Operating Mode

SFT, Normally Black, Transmissive

Support Color

262K/16.7M 50% NTSC

Light Source

WLED [6S5P] , 50K hours , With LED Driver

Weight

280g (Typ.)

Designed For

Frame Rate

60Hz

Touch Panel

Without

Interface Type

LVDS (1 ch, 6/8-bit) , 40 pins Connector

Power Supply

3.3V (Typ.)

Environment

Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
