84PPI Digital Signage Lcd Panel Glass Oled BOE DV185WHM-NM1 250cd/M2

Customer Reviews
We visited their factory many times.Their workshop is very big and e ink display module are really great!

—— Chris

Our company have placed orders to Ridafone many times.They develop and produce all e ink LCD display items in good quality.

—— Picado Freddy

I'm Online Chat Now

84PPI Digital Signage Lcd Panel Glass Oled BOE DV185WHM-NM1 250cd/M2

84PPI Digital Signage Lcd Panel Glass Oled BOE DV185WHM-NM1 250cd/M2
84PPI Digital Signage Lcd Panel Glass Oled BOE DV185WHM-NM1 250cd/M2 84PPI Digital Signage Lcd Panel Glass Oled BOE DV185WHM-NM1 250cd/M2 84PPI Digital Signage Lcd Panel Glass Oled BOE DV185WHM-NM1 250cd/M2

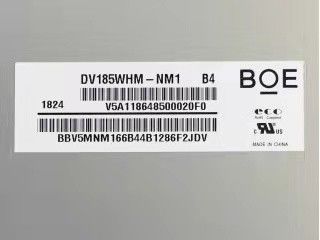

Large Image :  84PPI Digital Signage Lcd Panel Glass Oled BOE DV185WHM-NM1 250cd/M2

Product Details:
Place of Origin: China
Brand Name: BOE
Certification: Rohs,CE,FCC
Model Number: DV185WHM-NM1
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Industrial packing
Delivery Time: 4-5 working day
Payment Terms: T/T,W, Western Union, MoneyGram
Supply Ability: 3000pcs per week

84PPI Digital Signage Lcd Panel Glass Oled BOE DV185WHM-NM1 250cd/M2

Description
Quality: Brand New Original Package: Original Industrial Packing
Material: Glass Oled Color: 16.7M Colors
Model: WLED Style: Wide Screen High Resolution 1366*768PIXELS
Brightness: 250cd Connector: 30PIN
Working Time: 30k Hours Input Voltage: 5.0V
High Light:

84PPI Digital Signage Lcd Panel

,

Glass Oled Digital Signage Lcd Panel

,

250cd/M2 Computer Widescreen Monitor

BOE 18.5inch Digital signage lcd panel DV185WHM-NM1 1366*768pixels 84PPI 250 cd/m² 5.0V 30Pin



BOE Technology Group Co., Ltd. (hereafter called BOE) DV185WHM-NM1 is a 18.5 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: sRGB, WLED Backlight, Upside I/F, Matte , ES 6.0 compliant. Based on its features, einklcd recommend that this model be applied to Digital Signage etc. According to the information stored in einklcd this model mass production on Q2, 2018, Now this model is in production.  We inputted this model's specification on Jul 2 2018 for the first time, and the latest update on Feb 1 2021. If you want to embed DV185WHM-NM1 LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail. The DV185WHM-NM1 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
