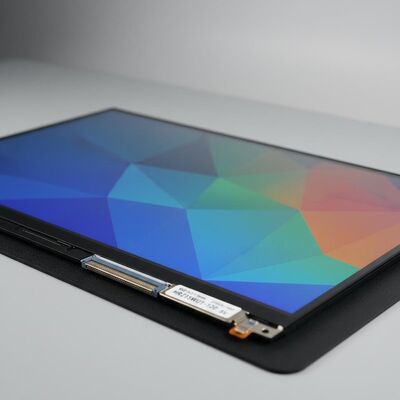

BOE 21.5" Laptop Lcd Screen 102PPI 1920×1080 FHD 30 PIN 5V HR215WU1-120

• Panel Brand
  BOE
• Panel Model
  HR215WU1-120

• Panel Size
  21.5"
• Panel Type
  a-Si TFT-LCD, LCM

• Resolution
  1920(RGB)×1080, FHD, 102PPI
• Pixel Format
  RGB Vertical Stripe

• Display Area
  476.64(W)×268.11(H) mm
• Bezel Opening
  479.8(W)×271.3(H) mm

• Outline Size
  495.6(W)×292.2(H) ×11.3(D) mm
• Surface
  Antiglare, Hard coating (3H)

• Brightness
  250 cd/m² (Typ.)
• Contrast Ratio
  1000:1 (Typ.) (TM)

• Viewing Angle
  89/89/89/89 (Typ.)(CR≥10)
• Display Mode
  ADS, Normally Black, Transmissive

• Best View on
  Symmetry
• Response Time
  14 (Typ.)(Tr+Td)

• Display Colors
  16.7M 72% NTSC
• Lamp Type
  17S4P WLED , 30K hours , Without Driver

• Frequency
  60Hz
• Touch Screen
  Without

• Panel Weight
  1.79Kgs (Typ.)
• Signal Interface
• LVDS (2 ch, 8-bit) , 30 pins Connector
• Input Voltage
• 5.0V (Typ.)

• Environment
• Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

BOE Technology Group Co., Ltd. (hereafter called BOE) HR215WU1-120 is a 21.5 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by Panelook in the following: WLED Backlight, Reverse I/F, Matte , ES8.0. Based on its features,einklcd recommend that this model be applied to Desktop Monitor etc. According to the information stored in Panelook this model mass production on Q1, 2013, Now this model is in production. There are 53 items stock and 49 suppliers of this model on Panelook. We inputted this model's specification on Nov 12 2013 for the first time, and the latest update on May 27 2021. If you want to embed HR215WU1-120 LCM in your future product, Panelook strongly recommend that you should contact with BOE or it's distributor to learn lateast production and specification detail. The HR215WU1-120 production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making.
