Product Details:
|
| Quality: | Brand New Original | Package: | Original Industrial Packing |
|---|---|---|---|
| Material: | Glass Oled | Color: | 16.2m Colors |
| Model: | XGA | Style: | Wide Screen High Resolution 3840*2160Pixels |
| Brightness: | 400cd | Connector: | 40 |
| Contrast Ratio: | 800:1 | Working Time: | 15k Hours |
| High Light: | 40 Pin Lcd Pc Monitor,400CD Touch Screen Computer Monitor |
||
| Brand | BOE | Model | NV140QUM-N61 (BOE06DE) |
|---|---|---|---|
| Diagonal Size | 14.0 inch | Type | a-Si TFT-LCD , LCM |
| Pixel Format | 3840(RGB)×2160 [UHD] | Configuration | RGB Vertical Stripe |
| Active Area | 309.31(H)×173.99(V) mm | Outline Dim. | 315.01(H)×199.04(V) ×2.4(D) mm |
| Bezel Area | - | Treatment | Antiglare (Haze 40%) |
| Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry | Response Time | 35 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 100% sRGB | Light Source | WLED [8S8P] , 15K hours , With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) | Designed For | |
| Frame Rate | 60Hz | Touch Panel | Without |
| Interface Type | eDP (4 Lanes) , HBR2 (5.4G / lane) , 40 pins Connector | ||
| Power Supply | 3.3V (Typ.) | ||
| Environment | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -20 ~ 65 °C | ||

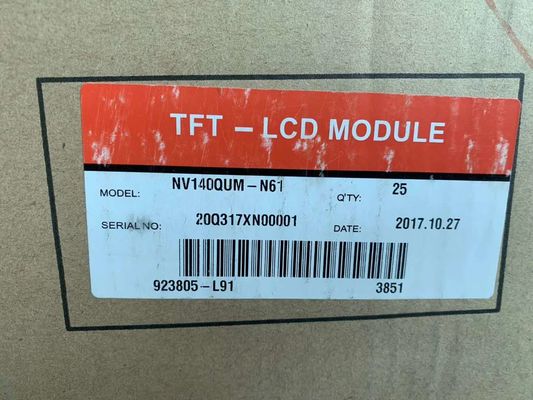

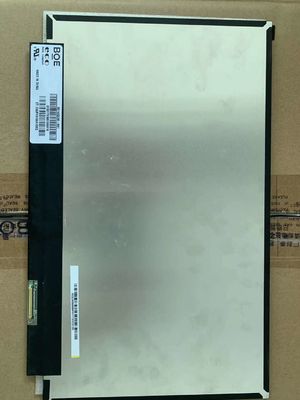

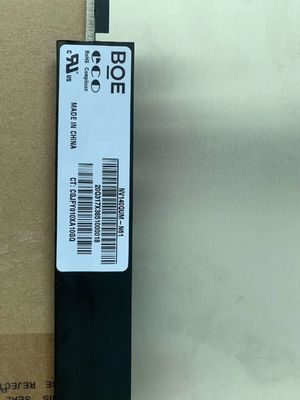

BOE NV140QUM-N61 (BOE06DE) 14Inch laptop Screen3840*2160Pixels 400CD 40Pin
The NV140QUM-N61 (Product Code: BOE06DE) is a 14.0 inch diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -20 ~ 60°C , a storage temperature range of -20 ~ 65°C . It's general features are summarized by Einklcd in the following: sRGB, WLED Backlight, With LED Driver, Reverse I/F, Matte . Based on its features, Einklcd recommend that this model be applied to Laptop etc. According to the information stored in einklcd this model mass production on Q1, 2017, Now this model is in production. We inputted this model's specification on May 23 2018 for the first time, and the latest update on Feb 26 2020. If you want to embed NV140QUM-N61 LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail. The NV140QUM-N61 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
