| Brand Name: | Innolux |
| Model Number: | NJ070NA-23A |
| MOQ: | 10pcs |
| Price: | Negotiation |

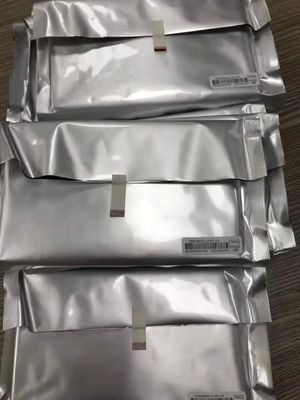

| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |
| Manufacturer |
|---|
| Screen Size |
| Pixel Number |
| Active Area(mm) |
| Bezel Area(mm) |
| Luminance |
| Viewing Angle |
| Good View at |
| Color Depth |
| Mass |
| Refresh Rate |
| Innolux |
| 7.0 inch |
| 1024(RGB)×600 (WSVGA) |
| 154.214 × 85.92 (H×V) |
| 157.21 × 89.49 (H×V) |
| 500 (Typ.)(cd/m²) |
| 75/75/70/75 (Typ.)(CR≥10) |
| 6 o'clock |
| 262K/16.7M |
| 140g (Typ.) |
| 60Hz |
| Model Name |
| Screen Type |
| Arrangement |
| Outline(mm) |
| Treatment |
| Contrast Ratio |
| Work Mode |
| Response |
| Backlight |
| Used for |
| Touchscreen |
| NJ070NA-23A |
| LCM , a-Si TFT-LCD |
| RGB Vertical Stripe |
| 164.9 × 100 × 5.1 (H×V×D) |
| Hard coating |
| 800 : 1 (Typ.) (TM) |
| TN, Normally White, Transmissive |
| 10/15 (Typ.)(Tr/Td) ms |
| WLED , 20K hours , No Driver |
|
|
| Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , FPC , 40 pins |
|---|---|
| Voltage Supply | 3.3/11/20/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

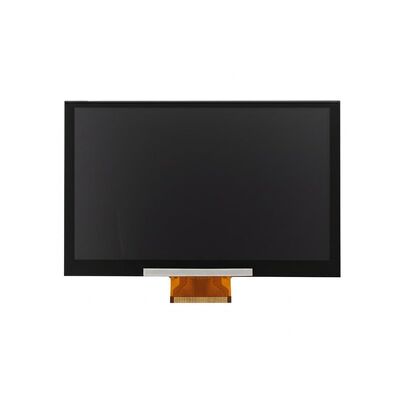

NJ070NA-23A is a 7.0" diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by einklcd in the following: WLED Backlight, U/D,L/R Reverse, 6/8 bit . Based on its features,einklcd recommend that this model be applied to Automotive Display etc.Built-in NT51008QH-D 3EA + NT52003BH 3EB driver IC. According to the information stored in einklcd this model mass production on Q2, 2017, Now this model is in production. We inputted this model's specification on Sep 26 2017 for the first time, and the latest update on May 16 2018. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with Innolux or it's agent to learn lateast production and specification detail of NJ070NA-23A. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
|
|
