| Brand Name: | Hannstar |
| Model Number: | HSD104KXN1-A10 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

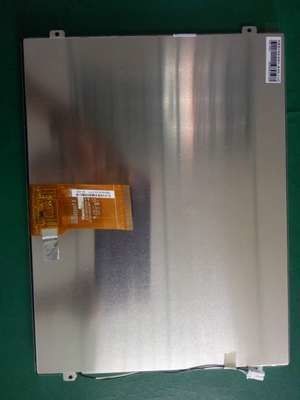

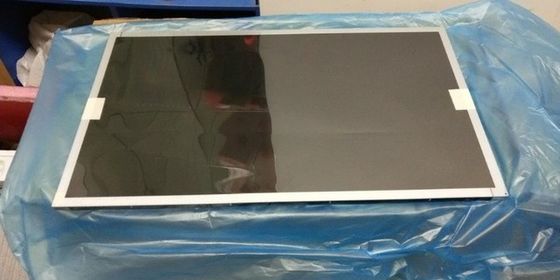

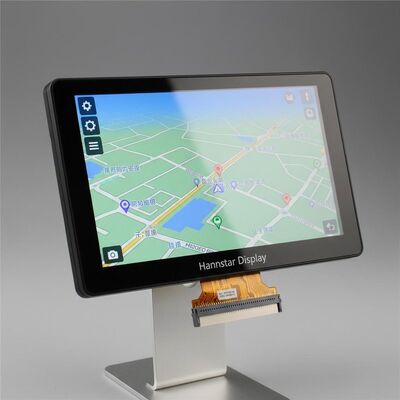

Hannstar 60pin 10.4" lcd HSD104KXN1-A10 16.2M color 10.4 inch car lcd screens 1024*768 Pixels for Car GPS display 50P WLED
| Brand | HannStar | Model | HSD104KXN1-A10 |
|---|---|---|---|
| Diagonal Size | 10.4 inch | Type | a-Si TFT-LCD , LCM |
| Pixel Format | 1024(RGB)×768 [XGA] | Configuration | RGB Vertical Stripe |
| Active Area | 211.2(H)×158.4(V) mm | Outline Dim. | 236(H)×174.3(V) ×7(D) mm |
| Bezel Area | 213.2(H)×160.4(V) mm | Treatment | Antiglare, Hard coating (3H) |
| Luminance | 600 cd/m² (Typ.) | Contrast Ratio | 900:1 (Typ.) (TM) |
| View Direction | Symmetry | Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | IPS Pro, Normally Black, Transmissive |
| Support Color | 262K/16.2M | Light Source | WLED [4S8P] , 30K hours , W/O Driver |
| Weight | 316g | Designed For |
|
| Frame Rate | 60Hz | Touch Panel | Without |
| Interface Type | 60 pins LVDS (1 ch, 6/8-bit) , Connector | ||
| Power Supply | 3.3/12.1/25/-10V (Typ.)(DVDD/AVDD/VGH/VGL) | ||
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C | ||
|
|
|||
HannStar Display Corporation (hereafter called HannStar) HSD104KXN1-A10 is a 10.4 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.04G (10.3 m/s²). It's general features are summarized by einklcd in the following: Hight Brightness, WLED Backlight, U/D,L/R Reverse, 6/8 bit, Matte . Based on its features, einklcd recommend that this model be applied to Automotive Display etc. According to the information stored in einklcd this model mass production on Q1, 2017, Now this model is in production. We inputted this model's specification on Oct 26 2017 for the first time, and the latest update on Feb 19 2019. If you want to embed HSD104KXN1-A10 LCM in your future product, einklcd strongly recommend that you should contact with HannStar or it's distributor to learn lateast production and specification detail. The HSD104KXN1-A10 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
All products will be send to customer after inspection one by one.
|
|
