| Brand Name: | Hannstar |
| Model Number: | HSD088IPW1-B00 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

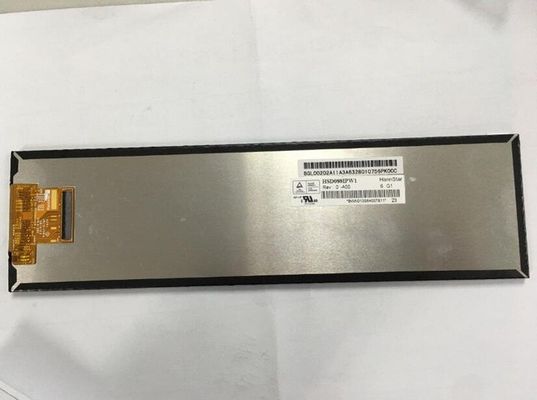

Hannstar 8.8" lcd HSD088IPW1-A 8.8 inch car LCD display for car Rear view mirror GPS car lcd screens
All Origianl product will be send to customer after full test one by one.
| Brand |
|---|
| Diagonal Size |
| Pixel Format |
| Active Area |
| Luminance |
| View Direction |
| Viewing Angle |
| Support Color |
| Weight |
| Frame Rate |
| HannStar |
| 8.8 inch |
| 1920×480(RGB) |
| 218.88(H)×54.72(V) mm |
| - |
| Symmetry |
| 85/85/85/85 (Typ.)(CR≥10) |
| 16.7M 50% (CIE1931) |
| - |
| 60Hz |
| Model |
| Type |
| Configuration |
| Outline Dim. |
| Contrast Ratio |
| Response Time |
| Operating Mode |
| Light Source |
| Designed For |
| Touch Panel |
| HSD088IPW1-B00 |
| a-Si TFT-LCD , LCM |
| RGB Horizontal Stripe |
| - |
| 800:1 (Typ.) (TM) |
| 30 (Typ.)(Tr+Td) |
| IPS Pro, Normally Black, Transmissive |
| WLED , 30K hours , W/O Driver |
|
|
| Without |
| Interface Type | 40 pins MIPI (4 data lanes) , Connector |
|---|---|
| Power Supply | 3.3/12.0/20.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
The HSD088IPW1-B00 is a 8.8 inch diagonal a-Si TFT-LCD display panel product from HannStar Display Corporation (hereafter called HannStar), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by einklcd in the following: WLED Backlight, Bar Display . Based on its features, einklcd recommend that this model be applied to Automotive Display etc. Now this model is in production. We inputted this model's specification on Apr 9 2018 for the first time, and the latest update on Feb 26 2019. If you want to embed HSD088IPW1-B00 LCM in your future product, einklcd strongly recommend that you should contact with HannStar or it's agent to learn lateast production and specification detail.
|
|
