| Brand Name: | PVI |
| Model Number: | PD050VL1 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |

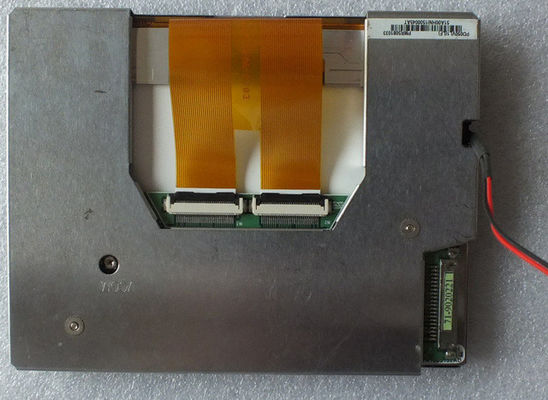

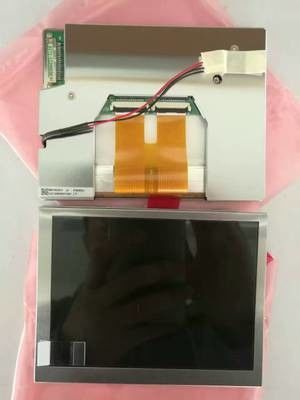

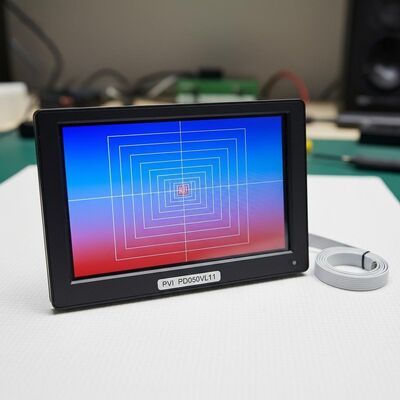

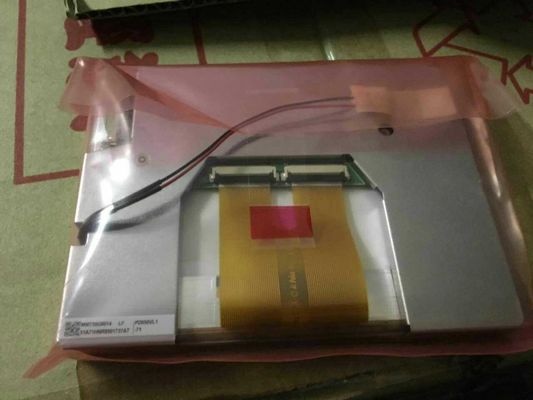

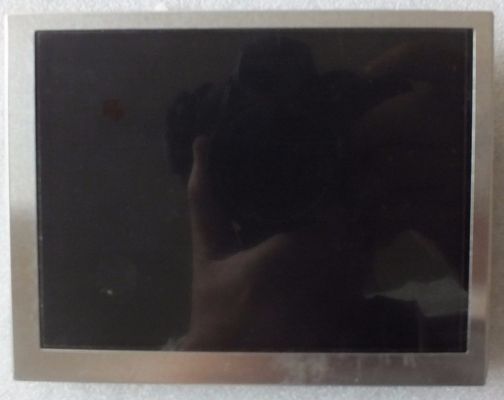

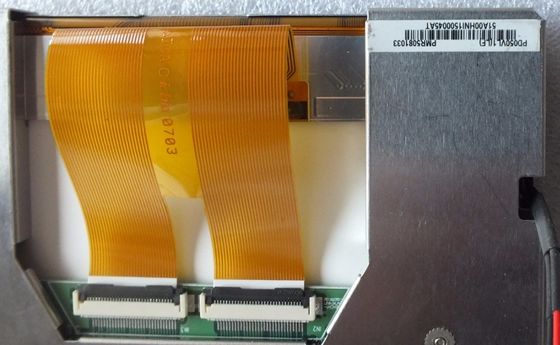

PVI 5inch Car lcd monitor display 5inch LCD display monitor PD050VL1 450CCD/M2 tft lcd display 640*480 20pin
Manufacturer
PVI
Model Name
PD050VL1
Screen Size
5.0 inch
Screen Type
LCM, a-Si TFT-LCD
Pixel Number
640(RGB)×480 (VGA)
Arrangement
RGB Vertical Stripe
Active Area(mm)
101.76 × 74.88 (H×V)
Outline(mm)
120.7 × 92.8 × 12.8 (H×V×D)
Bezel Area(mm)
106.7 × 78.50 (H×V)
Treatment
Antiglare
Luminance
450 cd/m² (Typ.)
Contrast Ratio
400 : 1 (Typ.) (TM)
Viewing Angle
60/60/40/55 (Typ.)(CR≥10)
Response
15/25 (Typ.)(Tr/Td) ms
Good View at
6 o'clock
Work Mode
TN, Normally White, Transmissive
Color Depth
262K
Backlight
3S8P WLED , 30K hours , No Driver
Mass
173.6±10g
Used for
Refresh Rate
-
Touchscreen
Without
Signal Type
LVDS (1 ch, 6-bit) , Connector , 20 pins
Voltage Supply
3.3V (Typ.)
Max. Ratings
Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 80 °C
Prime View International Co., Ltd. (hereafter called PVI) PD050VL1 is a 5.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -40 ~ 90°C . It's general features are summarized by einklcd in the following: Wide Temperature, WLED Backlight, Matte , Support the DENB mode, Sync mode (Hsync+Vsync). Based on its features, einklcd recommend that this model be applied to Automotive Display, Industrial etc. According to the information stored in einklcd this model mass production on Q2, 2007 and last shippment on Q3, 2016, Now this model is discontinued. We inputted this model's specification on Jan 5 2011 for the first time, and the latest update on Apr 15 2016. If you want to embed PD050VL1 LCM in your future product, einklcd strongly recommend that you should contact with PVI or it's distributor to learn lateast production and specification detail. The PD050VL1 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
|
|
