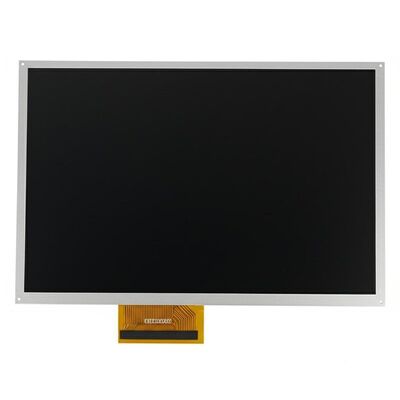

800*600 Pixels Tft Lcd Display EE080NA-06A 500CD/M2 50 Pin Innolux 8" Industrial

Brand

Chimei Innolux

Model

EE080NA-06A

Diagonal Size

8.0 inch

Type

a-Si TFT-LCD, CELL

Pixel Format

800(RGB)×600 [SVGA]

Configuration

RGB Vertical Stripe

Active Area

162(H)×121.5(V) mm

Outline Dim.

171(H)×132.7(V) ×1.43(D) mm

Bezel Area

-

Treatment

Antiglare

Luminance

0 cd/m²

Contrast Ratio

500:1 (Typ.) (TM)

View Direction

6 o'clock

Response Time

10/15 (Typ.)(Tr/Td)

Viewing Angle

70/70/50/70 (Typ.)(CR≥10)

Operating Mode

TN, Normally White, Transmissive

Plate Thickness

0.50+0.50 mm

Transmittance

5.49% (Typ.)(with Polarizer)

Support Color

16.7M 50% (CIE1931)

Light Source

No B/L

Weight

79.0g

Designed For

Frame Rate

60Hz

Touch Panel

Without

Interface Type

50 pins Parallel RGB (1 ch, 8-bit) , FPC

Power Supply

3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)

Environment

Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

The EE080NA-06A is a 8.0 inch diagonal a-Si TFT-LCD display panel product from Chimei Innolux Corporation (hereafter called Chimei Innolux), without backlight, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by einklcd in the following: Antiglare Surface, Landscape type, U/D,L/R Reverse , FOG. Based on its features, einklcd recommend that this model be applied to Digital Photo Frame etc. According to the information stored in einklcd this model mass production on Q3, 2011, Now this model is in production. We inputted this model's specification on Apr 4 2013 for the first time, and the latest update on Feb 6 2017. If you want to embed EE080NA-06A CELL in your future product, einklcd strongly recommend that you should contact with Chimei Innolux or it's agent to learn lateast production and specification detail. The EE080NA-06A production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
