8 Inch 500cd/m2 TFT LCD Display with 50 Pin Connector for Industrial and Car Applications

8 Inch 500cd/m2 TFT LCD Display with 50 Pin Connector for Industrial and Car Applications

8 Inch 500cd/m2 TFT LCD Display with 50 Pin Connector for Industrial and Car Applications

Brand Name: innolux
Model Number: EE080NA-06A
MOQ: 10pcs
Price: Negotiation
Payment Terms: T/T,W,Western Union,MoneyGram
Supply Ability: 3000pcs per week
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,CE,FCC
Quality:
Brand New Original
Package:
Original Industrial Packing
Material:
Glass Oled
Color:
16.7M Colors
Model:
WLED
Style:
Wide Screen High Resolution 800*600
Brightness:
500cd
Connector:
500
Contrast Ratio:
500:1
Working Time:
50k Hours
Packaging Details:
Industrial packing
Highlight:

lcd display screen

,

tft lcd display

Product Description
800*600 Pixels TFT LCD Display EE080NA-06A 500CD/M² 50 Pin Innolux 8" Industrial
Product Specifications
Brand Chimei Innolux
Model EE080NA-06A
Diagonal Size 8.0 inch
Type a-Si TFT-LCD, CELL
Pixel Format 800(RGB)*600 [SVGA]
Configuration RGB Vertical Stripe
Active Area 162(H)*121.5(V) mm
Outline Dimensions 171(H)*132.7(V) *1.43(D) mm
Treatment Antiglare
Luminance 500 cd/m²
Contrast Ratio 500:1 (Typ.) (TM)
View Direction 6 o'clock
Response Time 10/15 (Typ.)(Tr/Td)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10)
Operating Mode TN, Normally White, Transmissive
Plate Thickness 0.50+0.50 mm
Transmittance 5.49% (Typ.)(with Polarizer)
Support Color 16.7M 50% (CIE1931)
Light Source No Backlight
Weight 79.0g
Frame Rate 60Hz
Touch Panel Without
Interface Type 50 pins Parallel RGB (1 ch, 8-bit), FPC
Power Supply 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
Operating Temperature -20 ~ 70 °C
Storage Temperature -30 ~ 80 °C
Key Features
  • 8.0-inch SVGA TFT-LCD display panel
  • High brightness of 500 cd/m²
  • Wide operating temperature range (-20°C to 70°C)
  • Antiglare surface treatment
  • 50-pin parallel RGB interface
  • No backlight or touch screen included

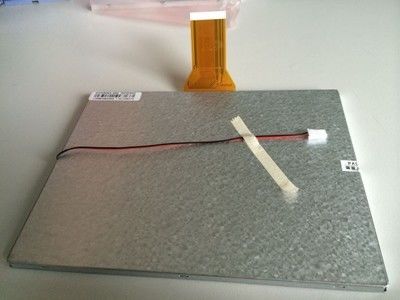

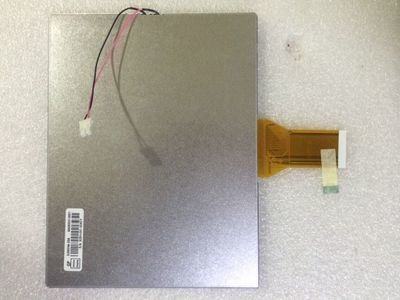

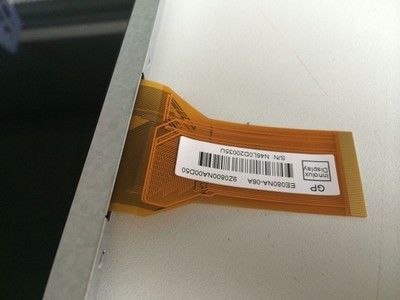

Product Images
8 Inch 500cd/m2 TFT LCD Display with 50 Pin Connector for Industrial and Car Applications 0 8 Inch 500cd/m2 TFT LCD Display with 50 Pin Connector for Industrial and Car Applications 1
Product Overview
The EE080NA-06A is an 8.0-inch diagonal a-Si TFT-LCD display panel from Chimei Innolux Corporation. This industrial-grade display features an operating temperature range of -20°C to 70°C and storage temperature range of -30°C to 80°C. Key characteristics include antiglare surface treatment, landscape orientation, U/D and L/R reverse capabilities, and FOG (Flexible On Glass) technology. This model is particularly recommended for applications such as digital photo frames and other industrial display applications.
According to available information, this model entered mass production in Q3 2011 and remains in production. Specifications were first recorded on April 4, 2013, with the latest update on February 6, 2017. For integration into your products, we strongly recommend contacting Chimei Innolux or their authorized agents for the latest production status and detailed specifications. The production status information provided here is for reference only and should not be used as the sole basis for decision-making.
