8.8 Inch Car LCD Display with 1920×480 Resolution and 30K Hours Working Life for Automotive Use

Name: 8.8 Inch Car LCD Display with 1920×480 Resolution and 30K Hours Working Life for Automotive Use
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: HSD088IPW1-B00
Price: 30.00 USD
Availability: InStock

Brand Name:	Hannstar
Model Number:	HSD088IPW1-B00
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

1920*480pixels

Style:

LCD 40P

Brightness:

400 CCD M2

Color:

16.7M

Contrast Ratio:

800 :1

Working Life:

30K Hours

Packaging Details:

Industrial packing

Highlight:

lcd display screen

raspberry pi 7 touchscreen display

Product Description

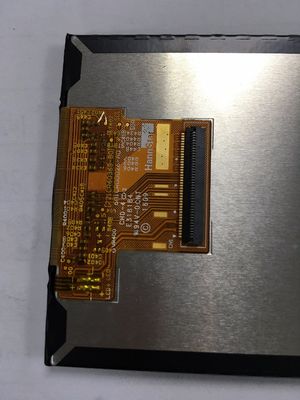

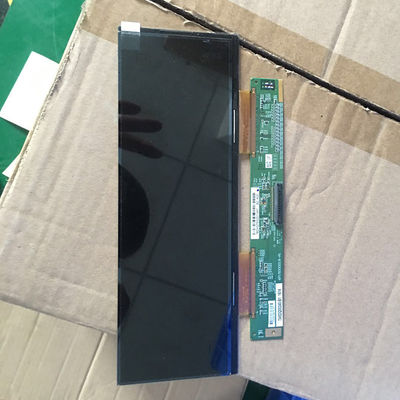

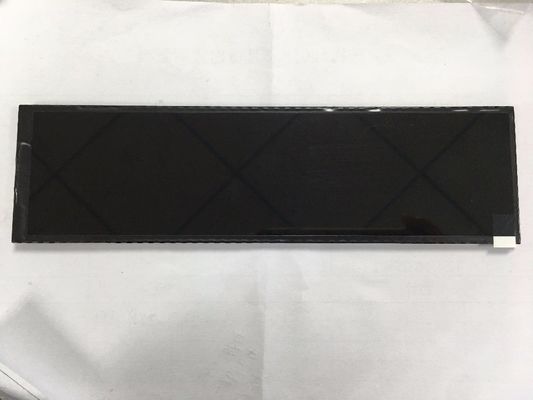

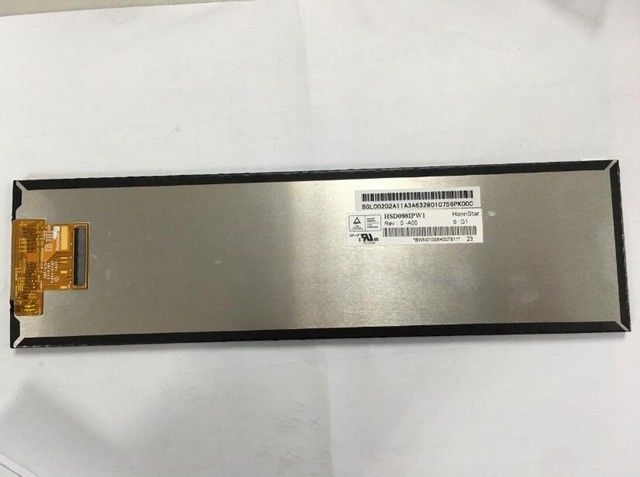

HSD088IPW1-B00 8.8 Inch Car LCD Display

Hannstar 8.8" LCD model HSD088IPW1-B00 automotive display panel designed for rear view mirror GPS systems and Raspberry Pi touchscreen applications.

Product Specifications

Brand	HannStar
Model	HSD088IPW1-B00
Diagonal Size	8.8 inch
Pixel Format	1920*480 (RGB)
Active Area	218.88(H)*54.72(V) mm
Display Type	a-Si TFT-LCD, LCM
Configuration	RGB Horizontal Stripe
Contrast Ratio	800:1 (Typ.)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Response Time	30ms (Typ.)
Operating Mode	IPS Pro, Normally Black, Transmissive
Frame Rate	60Hz
Support Color	16.7M 50% (CIE1931)
Light Source	WLED, 30K hours
Touch Panel	Without
Interface Type	40 pins MIPI (4 data lanes), Connector
Power Supply	3.3/12.0/20.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL)
Operating Temperature	-20 ~ 70 °C
Storage Temperature	-30 ~ 80 °C

Key Features

8.8-inch automotive-grade TFT-LCD display
High-resolution 1920*480 pixel format
IPS Pro technology for wide viewing angles
WLED backlight with 30,000-hour lifespan
MIPI interface with 40-pin connector
Designed for automotive display applications
Rugged operating temperature range (-20°C to 70°C)

Quality Assurance: All original products undergo comprehensive testing before shipment to ensure optimal performance and reliability.

Application Notes

The HSD088IPW1-B00 is specifically designed for automotive display applications including rear view mirror GPS systems and compatible with Raspberry Pi platforms. This model features WLED backlight technology and bar display format, making it ideal for automotive environments with its robust temperature tolerance and vibration resistance up to 1.5G (14.7 m/s²).
