| Brand Name: | IDTECH |
| Model Number: | N150U3-L06 |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Packaging Details: | Industrial packing |
| Payment Terms: | T/T,W, Western Union, MoneyGram |
| Panel Brand |
|---|
| Panel Size |
| Resolution |
| Display Area |
| Outline Size |
| Brightness |
| Viewing Angle |
| Best View on |
| Display Colors |
| Frequency |
| Shape Style |
| IDTech |
| 15.0" |
| 1600(RGB)×1200 , UXGA |
| 304.8(W)×228.6(H) mm |
| 317.3(W)×242(H) ×6.5(D) mm |
| 200 cd/m² (Typ.) |
| 85/85/85/85 (Typ.)(CR≥10) |
| Symmetry |
| 262K |
| 60Hz |
| Wedge (PCBA Bent, Depth ≥5.2mm) |
| Panel Model |
| Panel Type |
| Pixel Format |
| Bezel Opening |
| Surface |
| Contrast Ratio |
| Display Mode |
| Response Time |
| Lamp Type |
| Touch Screen |
| Application |
| N150U3-L06 |
| a-Si TFT-LCD , LCM |
| RGB Vertical Stripe |
| - |
| Antiglare |
| 400:1 (Typ.) (TM) |
| DD-IPS, Normally Black, Transmissive |
| 60 (Typ.)(Tr+Td) |
| 1 pcs CCFL , 10K hours , Without Driver |
| Without |
|
|

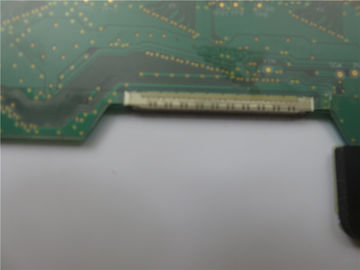

| Signal Interface | LVDS (2 ch, 6-bit) , 30 pins , Connector |
|---|---|
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |

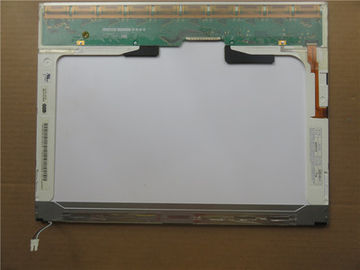

N150U3-L06 is a 15.0" diagonal a-Si TFT-LCD display panel product from International Display Technology Co., Ltd (hereafter called IDTech), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcdin the following: Antiglare Surface, Wide Viewing Angle, Landscape type . Based on its features, einklcd recommend that this model be applied to Laptop etc. According to the information stored in einklcd this model mass production on Q1, 2004, Now this model is discontinued. We inputted this model's specification on Aug 28 2012 for the first time, and the latest update on Nov 19 2014. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with IDTech or it's agent to learn lateast production and specification detail of N150U3-L06. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
All our LCD LED screen monitor module panel products will be full test one by one before sending .
|
|
