M3 Mobile Lcd Monitor Touch Screen Samsung 3.5 Inch 60 Pin LTP350QV-E06 High Brightness

Brand Name:	Samsung
Model Number:	LTP350QV-E06
MOQ:	10pcs
Price:	Negotiation
Packaging Details:	Industrial packing
Payment Terms:	T/T,W, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Resolution:

320*240

Style:

60PIN IPS

Brightness:

60 CD/M2

Color:

Contrast Ratio:

80 :1

Supply Ability:

3000pcs per week

Highlight:

touch screen desktop monitor

portable touch screen monitor

Product Description

Panel Brand	SAMSUNG	Panel Model	LTP350QV-E06
Panel Size	3.5"	Panel Type	a-Si TFT-LCD , LCM
Resolution	240(RGB)×320 , QVGA	Pixel Format	RGB Vertical Stripe
Display Area	53.64(W)×71.52(H) mm	Bezel Opening	-
Outline Size	64.3(W)×87.1(H) ×4.85(D) mm	Surface	Hard coating (3H)
Brightness	60 cd/m² (Typ.)	Contrast Ratio	80:1 (Typ.) (TM) 8:1 (Typ.) (RF)
Viewing Angle	40/40/25/35 (Typ.)(CR≥10)	Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock	Response Time	40 (Typ.)(Tr+Td)
Display Colors	262K	Lamp Type	WLED
Frequency	-	Touch Screen	4-wire Resistive Touch
Panel Weight	47.0/52.0g (Typ./Max.)	Application
Signal Interface	Parallel RGB (1 ch, 6-bit) , 60 pins , Connector
Input Voltage	3.3/5.0V (Typ.)(DVDD/AVDD)
Environment	Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C

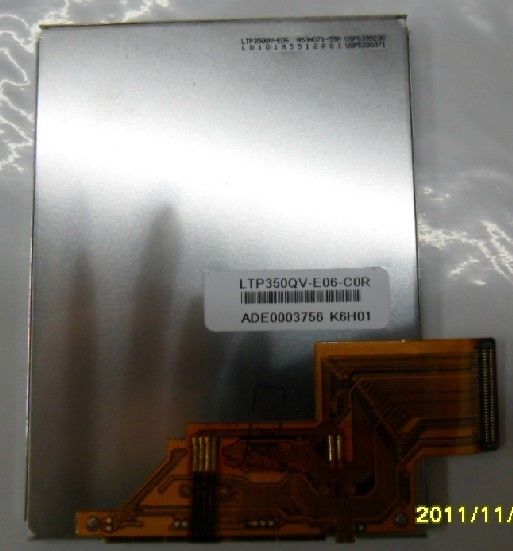

M3 Mobile Lcd Monitor Touch Screen Samsung 3.5 Inch 60 Pin LTP350QV-E06 High Brightness 0

All Origianl product will be send to customer after full test one by one.

Spec details can be send to you via email,please contact us.
