1920*360 Pixels 300CCD/M2 Brightness Stretched LCD Display with 30Pin Connector for Smart Cabinet

Name: 1920*360 Pixels 300CCD/M2 Brightness Stretched LCD Display with 30Pin Connector for Smart Cabinet
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: DV190FBM-NB0
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	DV190FBM-NB0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Led

Color:

16.7M

Model:

WLED,LCD

Style:

Bar Lcd Display

Resolution:

1920*360pixels

Brightness:

300CCD/M2

Connector:

30Pin

Working Life:

30k Hours

Contrast Ratio:

1200:1

Packaging Details:

Industrial packing

Highlight:

stretched lcd monitor

bar type display

Product Description

300CCD/M2 Stretched LCD Display - 1920*360 Pixel Bar LCD for Smart Cabinet

BOE LCD bar display 19" DV190FBM-NB0 stretched monitor with 1920*360 pixel resolution, specifically designed for smart cabinet applications.

Product Specifications

Brand	BOE
Model	DV190FBM-NB0
Diagonal Size	19.1 inch (1/3 cut of 21.5")
Type	a-Si TFT-LCD, LCM
Pixel Format	1920(RGB) * 360
Configuration	RGB Vertical Stripe
Active Area	476.64(H) * 89.37(V) mm
Outline Dimensions	491.5(H) * 109.4(V) * 12.8(D) mm
Treatment	Antiglare (Haze 25%)
Luminance	300 cd/m² (Typ.)
Contrast Ratio	1200:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	30 ms (Typ.)(Tr+Td)
Viewing Angle	89/89/89/89 (Typ.)(CR ≥10)
Operating Mode	ADS, Normally Black, Transmissive
Support Color	16.7M 72% (CIE1931)
Light Source	WLED, 30K hours, Without Driver
Weight	780g (Typ.)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	30 pins LVDS (2 ch, 8-bit), Connector
Power Supply	5.0V (Typ.)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

Product Features

Stretched bar display format ideal for smart cabinet integration
High-resolution 1920*360 pixel format for crisp display quality
WLED backlight with 30,000-hour lifespan
Wide viewing angles with symmetrical 89/89/89/89 specification
Antiglare treatment for reduced reflections
Compact profile with 12.8mm depth

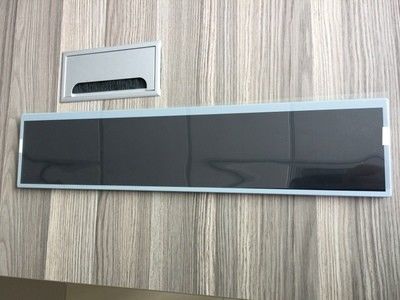

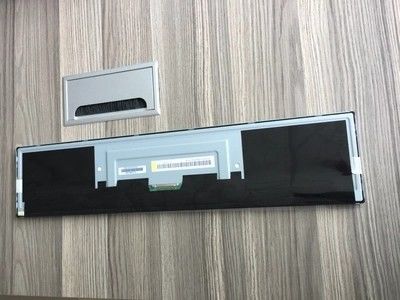

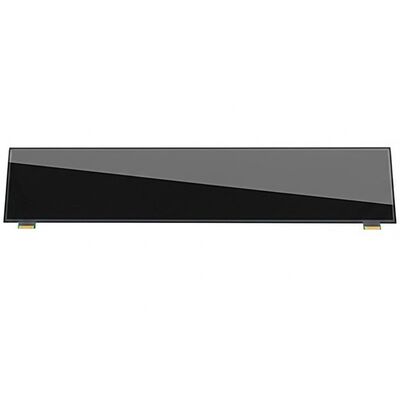

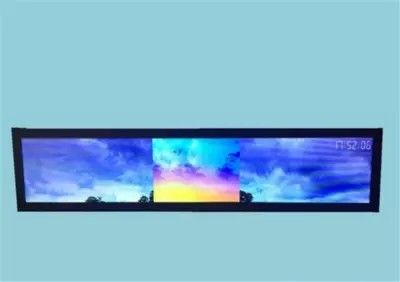

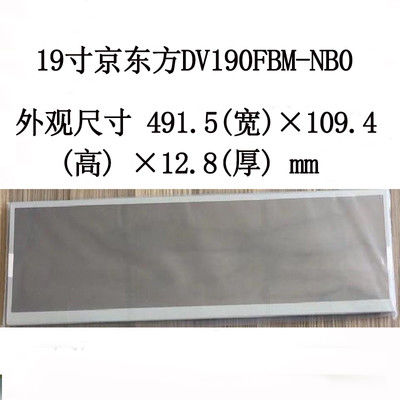

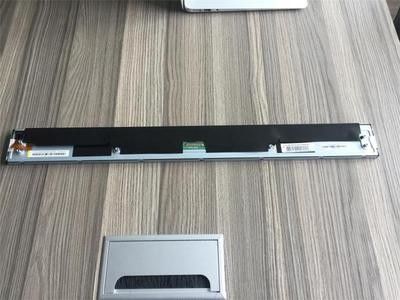

Product Images

All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
