24 Inch Stretched LCD Display Bar Type with 1920*360 Resolution 300 cd/m² Brightness and 16.7M Colors

Name: 24 Inch Stretched LCD Display Bar Type with 1920*360 Resolution 300 cd/m² Brightness and 16.7M Colors
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: DV240FBM-NB0
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	DV240FBM-NB0
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Led

Color:

16.7M

Model:

WLED,LCD

Style:

Bar Lcd Display

Resolution:

1920*360

Brightness:

300CCD/M2

Connector:

30Pin

Working Life:

30k Hours

Contrast Ratio:

1200:1

Packaging Details:

Industrial packing

Highlight:

bar type display

stretch monitor display

Product Description

24 Inch Stretched LCD Display - Bar Type DV240FBM-NB0

BOE stretch LCD screen 24" DV240FBM-NB0 stretched bar display with 300 cd/m² brightness and 1920*360 resolution, specifically designed for digital advertisement players with 16.7 million colors.

Product Specifications

Manufacturer	BOE
Model Name	DV240FBM-NB0
Screen Size	24.0 inch (1/3 cut of 27.0")
Screen Type	LCM, a-Si TFT-LCD
Pixel Number	1920(RGB) * 360
Arrangement	RGB Vertical Stripe
Active Area	597.888 * 112.104 mm (H*V)
Outline Dimensions	612.7 * 132.1 mm (HVD)
Surface Treatment	Antiglare (Haze 25%)
Luminance	300 cd/m² (Typical)
Contrast Ratio	1200:1 (Typical)
Viewing Angle	89/89/89/89 (Typical, CR ≥10)
Response Time	30 ms (Typical, Tr+Td)
Optimal Viewing	Symmetry
Work Mode	ADS, Normally Black, Transmissive
Color Depth	16.7M 72% (CIE1931)
Backlight	WLED, 30K hours, No Driver
Weight	1.21 kg (Typical)
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), Connector, 30 pins
Voltage Supply	5.0V (Typical)
Temperature Ratings	Storage: -20°C to 60°C Operating: 0°C to 50°C

Key Features

Stretched bar-type design ideal for digital signage and advertising displays
High brightness 300 cd/m² for clear visibility in various lighting conditions
Wide 89-degree viewing angles from all directions
Long-life WLED backlight with 30,000-hour lifespan
Antiglare surface treatment reduces reflections
Compact form factor with slim bezel design

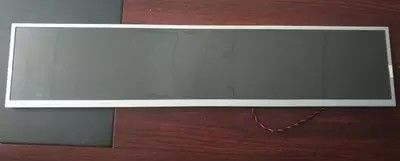

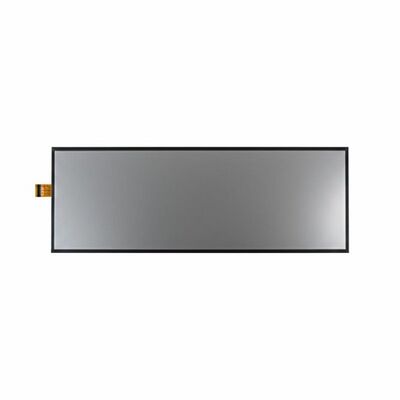

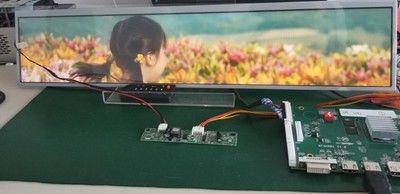

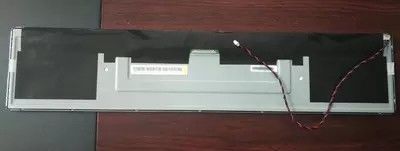

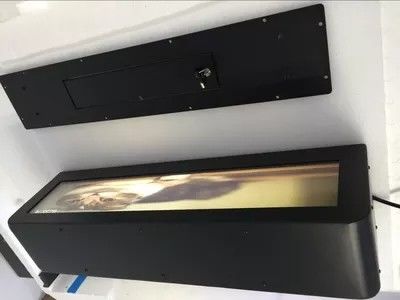

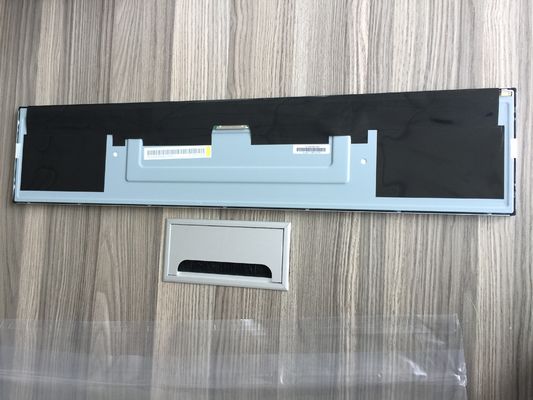

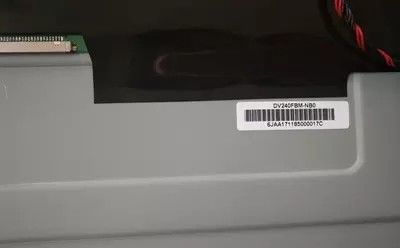

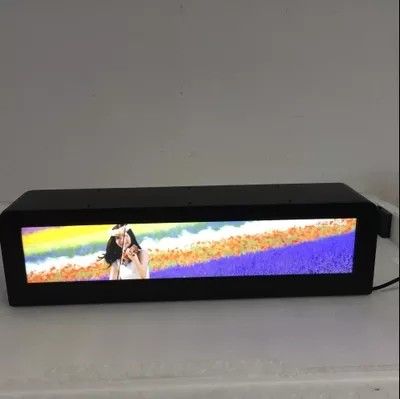

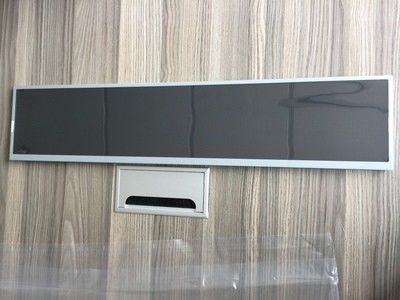

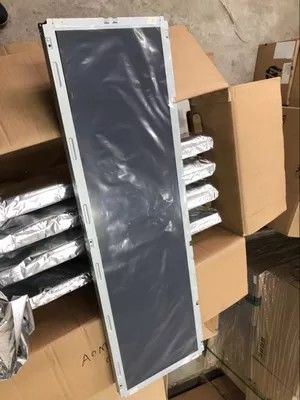

Product Images

All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
