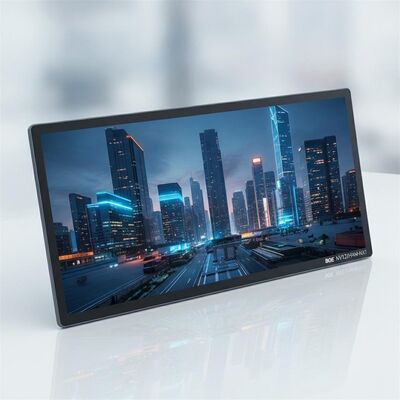

BOE 12.7inch Stretched LCD Display with 2880*864pixels Resolution and 500 cd/m² Brightness

Name: BOE 12.7inch Stretched LCD Display with 2880*864pixels Resolution and 500 cd/m² Brightness
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: NV127H4M-NX1
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	NV127H4M-NX1
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Led

Color:

16.7M

Model:

LCM,TFT

Style:

LCM

Resolution:

2880*864pixels

Brightness:

500CCD/M2

Connector:

40Pin

Working Life:

15k Hours

Contrast Ratio:

1200:1

Screen Size:

12.7inch

Packaging Details:

Industrial packing

Product Description

BOE 12.7-inch Stretched LCD Display NV127H4M-NX1

Product Overview

BOE Technology Group Co., Ltd. presents the NV127H4M-NX1 (Product Code: BOE0A8D), a 12.7-inch diagonal a-Si TFT-LCD display panel featuring an integral WLED backlight system with LED driver. This stretched bar display offers exceptional visual performance with 2880×864 pixel resolution and 500 cd/m² brightness.

Key Features

DCI-P3 and sRGB color gamut support
120Hz refresh rate for smooth performance
WLED backlight with integrated LED driver
eDP 1.4 interface with 4 lanes
PSR (Panel Self Refresh), SDRRS, CABC, and BIST technologies
Hard coating surface (3H hardness)
16.7 million colors with 100% DCI-P3 coverage

Technical Specifications

Manufacturer	BOE
Display Size	12.7" (Native bar)
Resolution	2880(RGB)×864 pixels (>3:1 aspect ratio)
Display Area	308.448(W) × 92.534(H) mm
Outline Size	313.54(W) × 101.33(H) × 4.3(D) mm
Brightness	500 cd/m² (Typical)
Viewing Angle	89/89/89/89 (Typical, CR≥10)
Contrast Ratio	1200:1 (Typical)
Response Time	25ms (Typical, Tr+Td)
Panel Weight	134g (Maximum)
Interface	eDP (4 Lanes), eDP1.4, HBR2 (5.4G/lane), 40-pin connector
Input Voltage	3.3V (Typical)
Light Source	10S6P WLED, 15K hours lifespan, with LED driver
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 55°C

Applications

This model is recommended for laptop displays, stretched bar LCD applications, and other devices requiring high-performance, elongated display solutions.

Important Note: Mass production began in Q2 2022 and the model is currently in production. For the latest production status and detailed specifications, we strongly recommend contacting BOE or their authorized distributors directly. The information provided here is for reference only and should not be used as the sole basis for decision-making.
