BOE High Brightness Stretched LCD Display with 300 cd/m² Brightness 1920x132 Pixels Resolution and 40 Pin LVDS Connector

Name: BOE High Brightness Stretched LCD Display with 300 cd/m² Brightness 1920x132 Pixels Resolution and 40 Pin LVDS Connector
Brand: FOCUS VISION TECHNOLOGY LIMITED
SKU: DV210FBM-N00
Price: 30.00 USD
Availability: InStock

Brand Name:	BOE
Model Number:	DV210FBM-N00
MOQ:	10pcs
Price:	Negotiation
Payment Terms:	T/T,W,Western Union,MoneyGram
Supply Ability:	3000pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs,CE,FCC

Quality:

Brand New Original

Package:

Original Industrial Packing

Material:

Glass Led

Color:

16.7M

Model:

WLED,LCD

Style:

Bar Lcd Display

Resolution:

1920*132pixels

Brightness:

300CCD/M2

Connector:

40Pin

Working Life:

30k Hours

Contrast Ratio:

1200:1

Packaging Details:

Industrial packing

Highlight:

stretched lcd monitor

stretch monitor display

Product Description

BOE High Brightness Stretched LCD Display

40 Pin Stretched LCD Monitor - 21" DV210FBM-N00 stretched monitor display with 300 cd/m² brightness and 1920*132 resolution for smart cabinet applications

Product Overview

This BOE LCD bar display features a 20.9-inch stretched monitor format specifically designed for smart cabinet applications. The DV210FBM-N00 model delivers high brightness and excellent visibility in various lighting conditions.

Technical Specifications

Manufacturer	BOE
Model	DV210FBM-N00
Diagonal Size	20.9 inch
Display Type	a-Si TFT-LCD, LCM
Pixel Format	1920(RGB)*132
Pixel Configuration	RGB Vertical Stripe
Active Area	529.416(H)*36.3974(V) mm

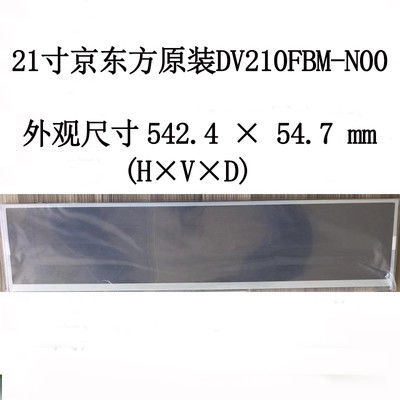

Outline Dimensions	542.4(H)*54.7(V) mm
Surface Treatment	Antiglare (Haze 25%)
Luminance	300 cd/m² (Typical)
Contrast Ratio	1200:1 (Typical) (TM)
View Direction	Symmetry
Response Time	8 ms (Typical)(G to G)
Viewing Angle	89/89/89/89 (Typical)(CR≥10)
Operating Mode	HADS, Normally Black, Transmissive
Color Support	16.7M 73% (CIE1931)
Light Source	WLED, 30K hours, With LED Driver
Weight	500g (Typical)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	40 pins LVDS (2 ch, 8-bit), Connector
Power Supply	12.0V (Typical)

Environmental Specifications

Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C

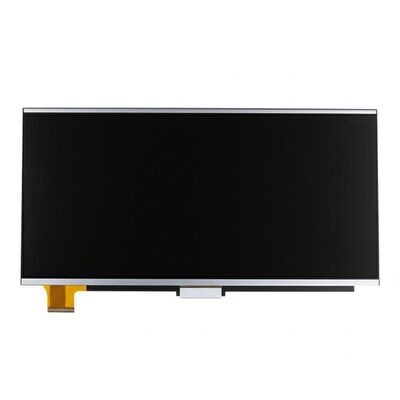

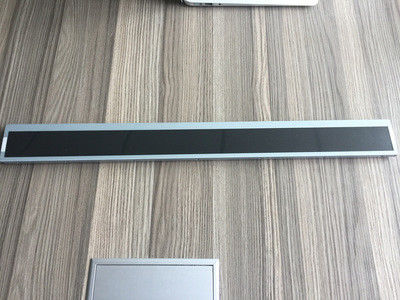

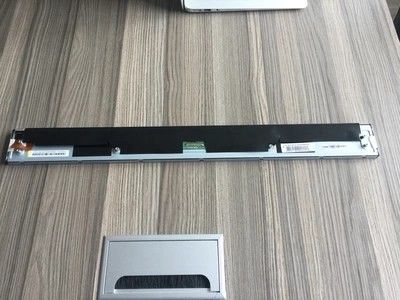

Product Images

All our LCD LED screen monitor module panel products undergo comprehensive individual testing before shipment to ensure optimal performance and reliability.
